Name: MSI PRO B760M-E DDR4 Micro-ATX Motherboard, Intel B760, LGA1700
Brand: MSI
SKU: B760M-E DDR4
Price: 2609.00 ZAR
Availability: InStock

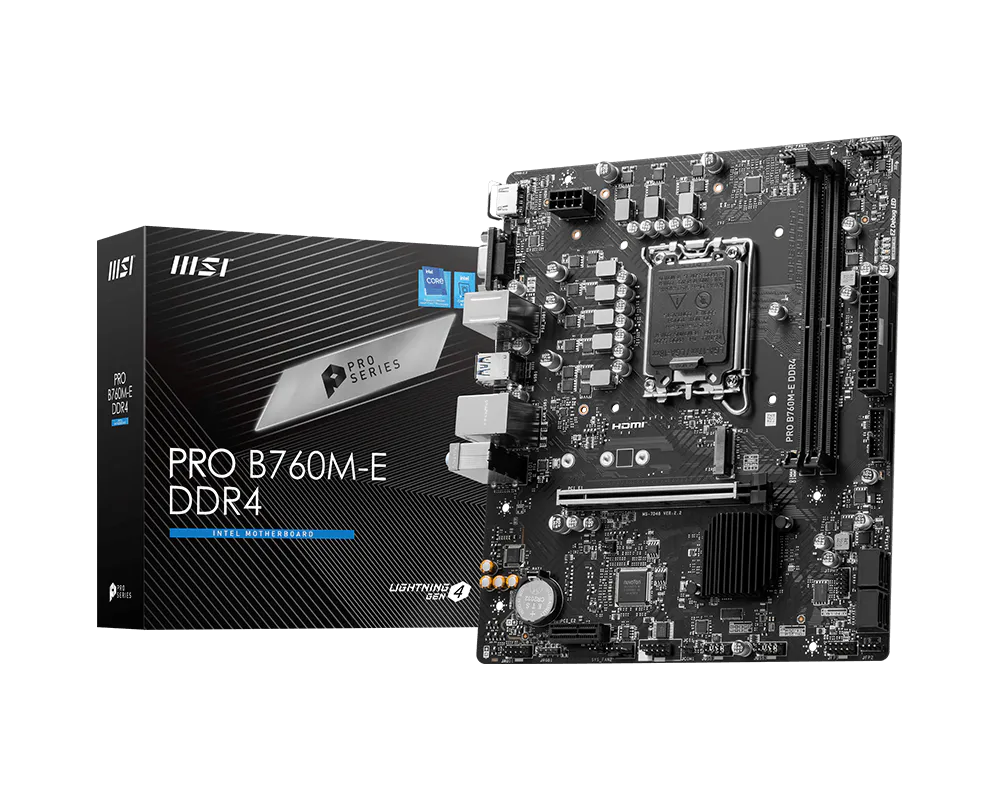

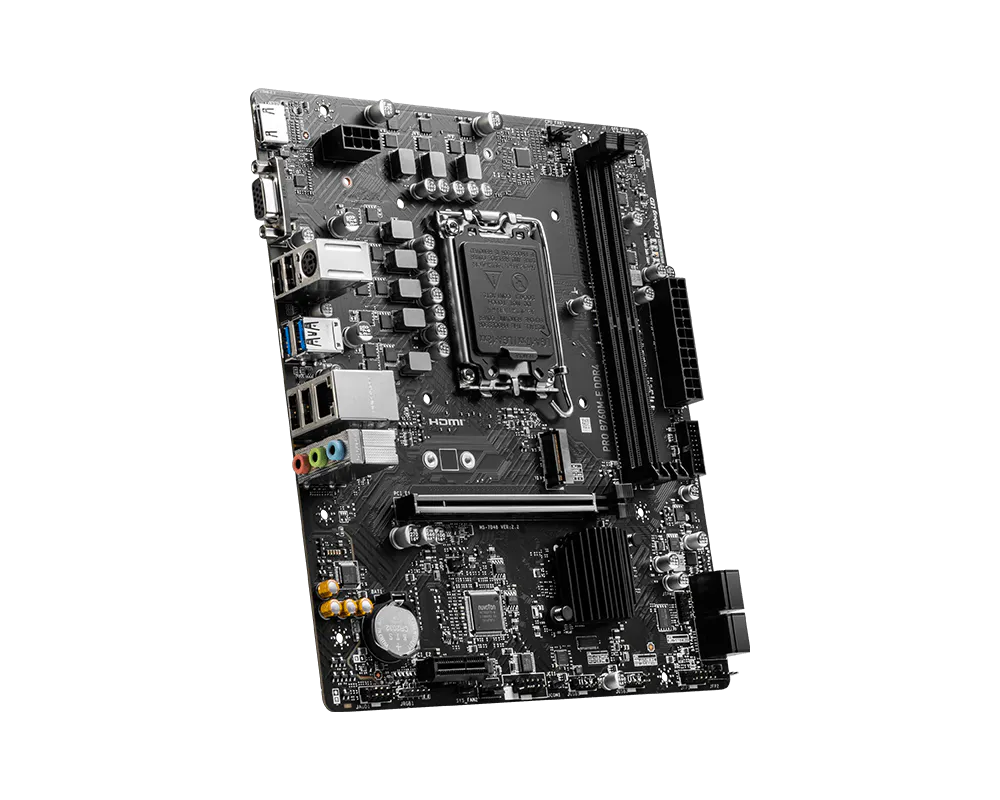

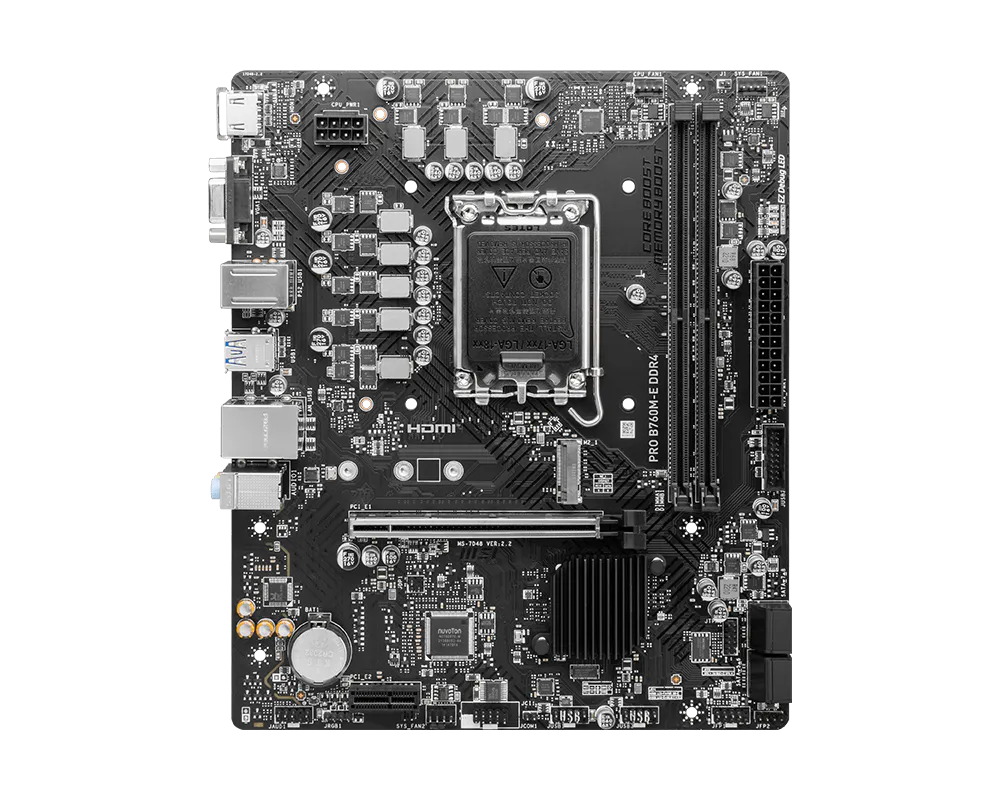

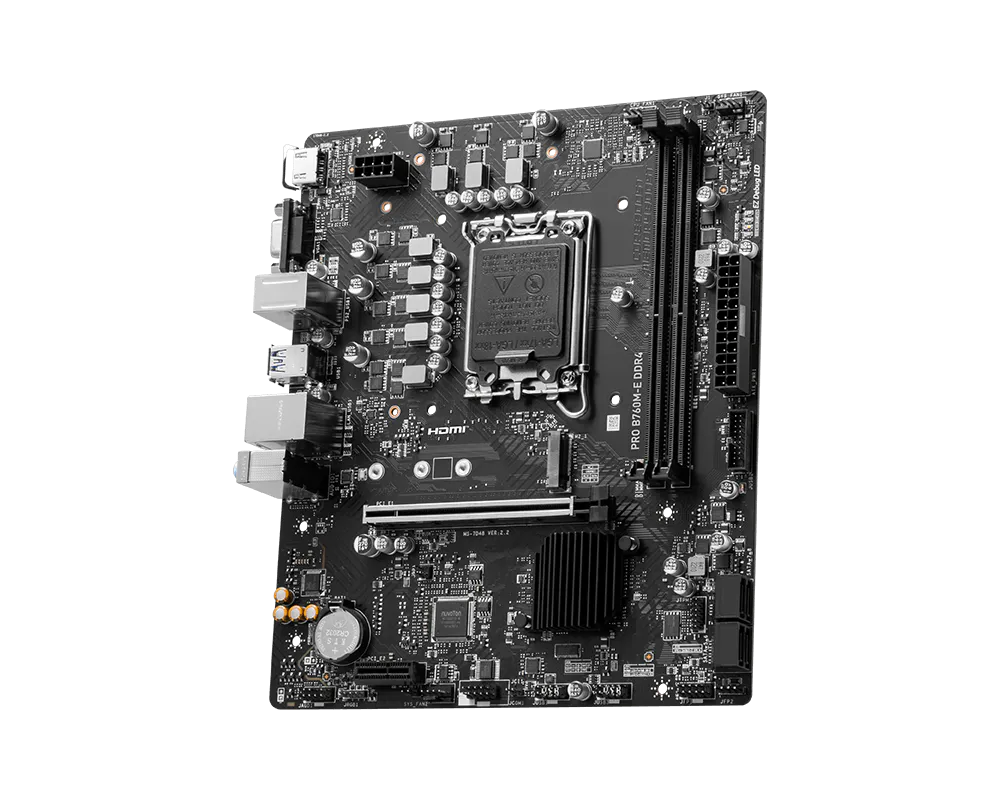

MSI PRO B760M-E DDR4 Micro-ATX Motherboard, Intel B760, LGA1700

Brand MSI

0 /5.0 (0 reviews)

SKU B760M-E DDR4

The MSI PRO B760M-E DDR4 is a compact Micro-ATX board for 12th, 13th and 14th Gen Intel processors that lets you reuse DDR4 memory. It is a sensible base for an office or entry-level gaming PC.

Key features

Supports Intel Core 14th, 13th and 12th Gen on LGA1700
2x DDR4 slots, up to 64 GB, up to 4800+ MHz (OC)
1x M.2 slot (PCIe 4.0 x4) and 4x SATA 6G
PCIe 4.0 x16 graphics slot
HDMI and VGA outputs for CPUs with graphics
Realtek Gigabit LAN and 7.1 HD audio

Specifications

Brand	MSI
Model	PRO B760M-E DDR4
Chipset	Intel B760
Socket	LGA1700
Memory	2x DDR4, max 64 GB, dual channel, 2133 to 4800+ MHz (OC)
Expansion	1x PCIe 4.0 x16, 1x PCIe 3.0 x1
Storage	1x M.2 (PCIe 4.0 x4 / SATA), 4x SATA 6G
RAID	RAID 0, 1, 5, 10 (SATA)
USB	2x USB 5Gbps Type-A rear, 4x USB 2.0 rear, front headers
Video out	1x HDMI (4K 30Hz), 1x VGA
LAN	Realtek RTL8111H Gigabit
Audio	Realtek ALC897, 7.1 channel
Form factor	mATX, 200 x 236.16 mm
