Name: MSI MPG B760I Edge WiFi DDR5 Intel LGA1700 Mini-ITX Motherboard
Brand: MSI
SKU: B760I EDGE WIFI
Price: 4569.00 ZAR
Availability: InStock

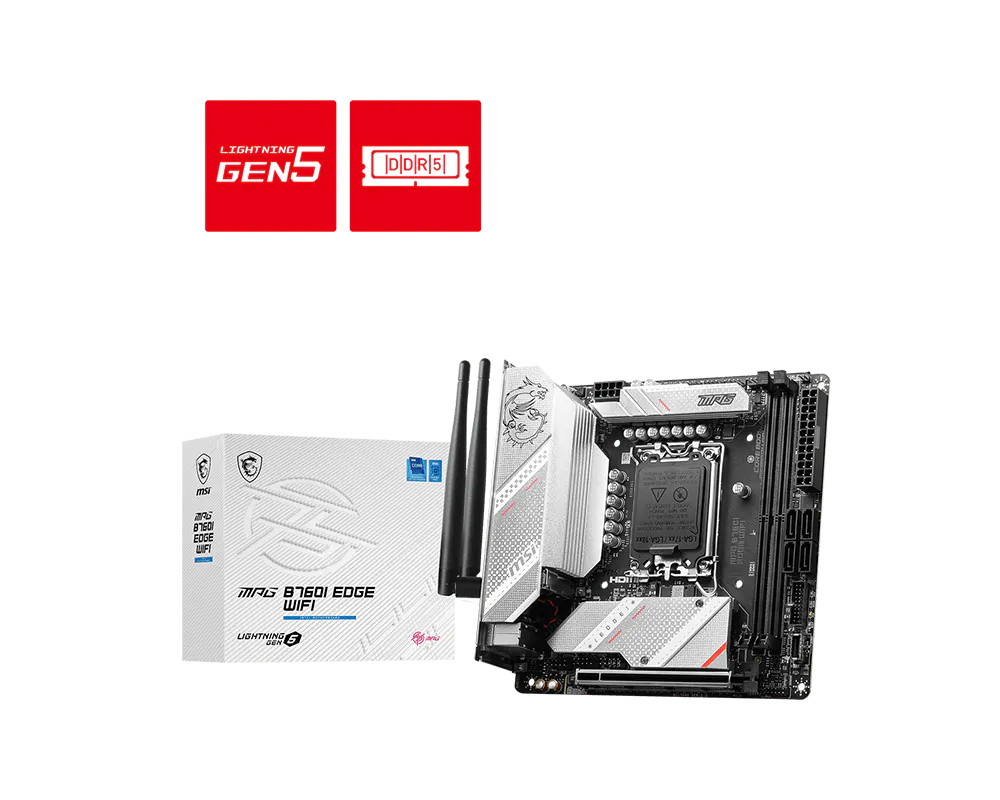

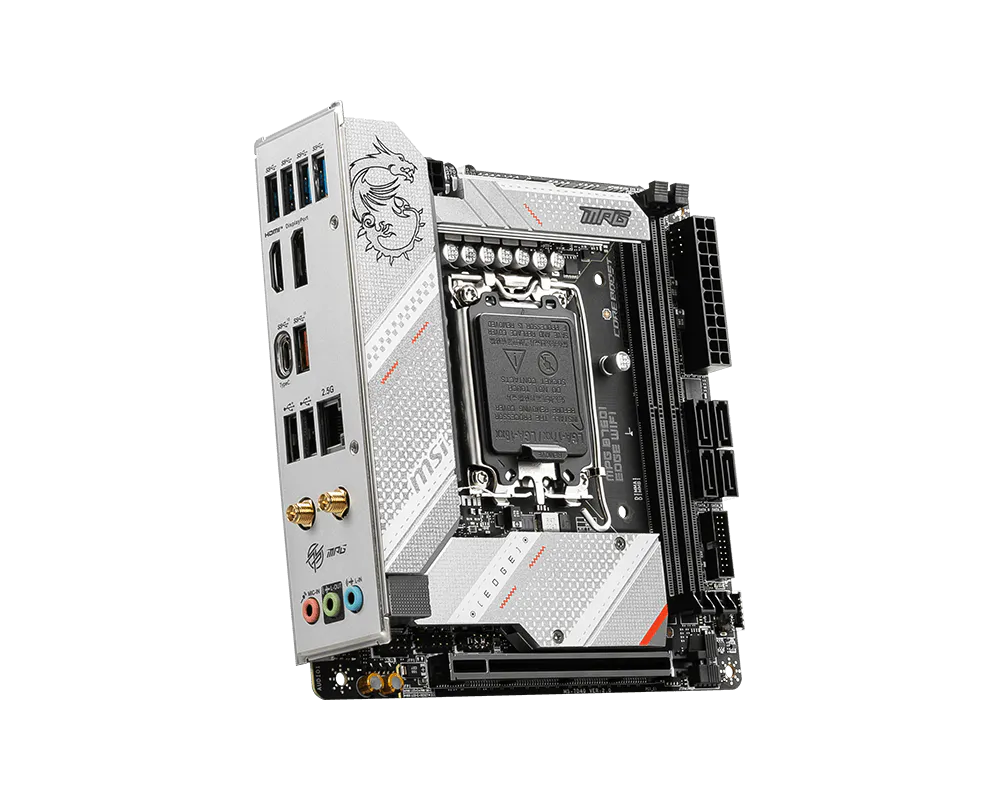

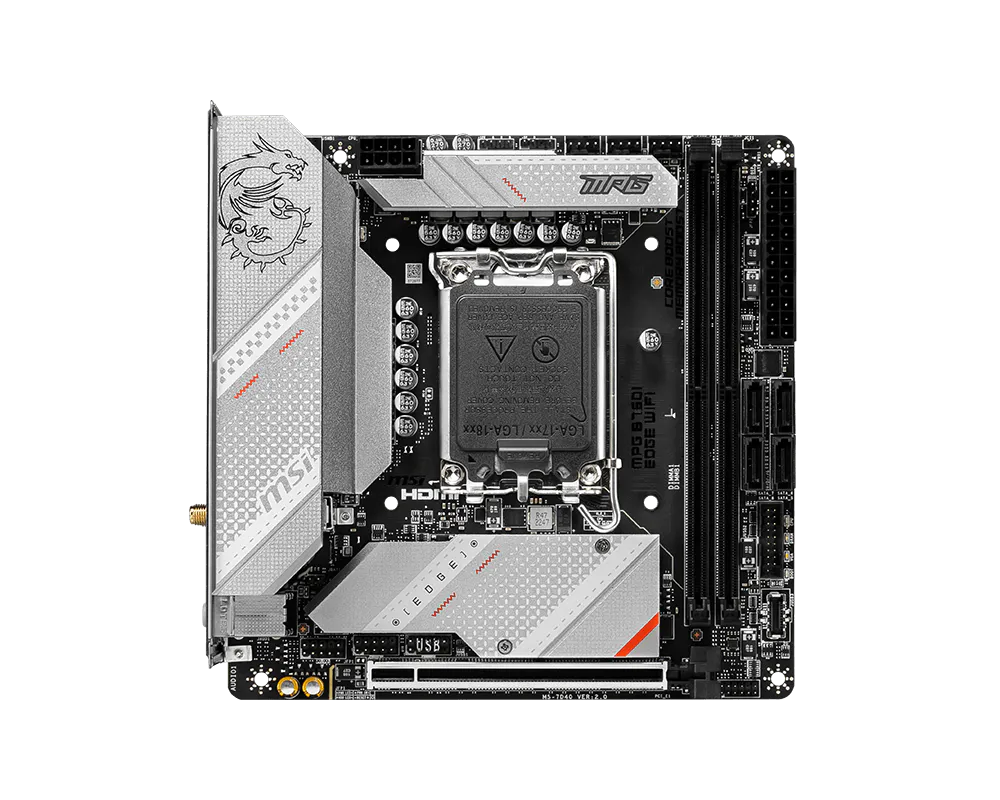

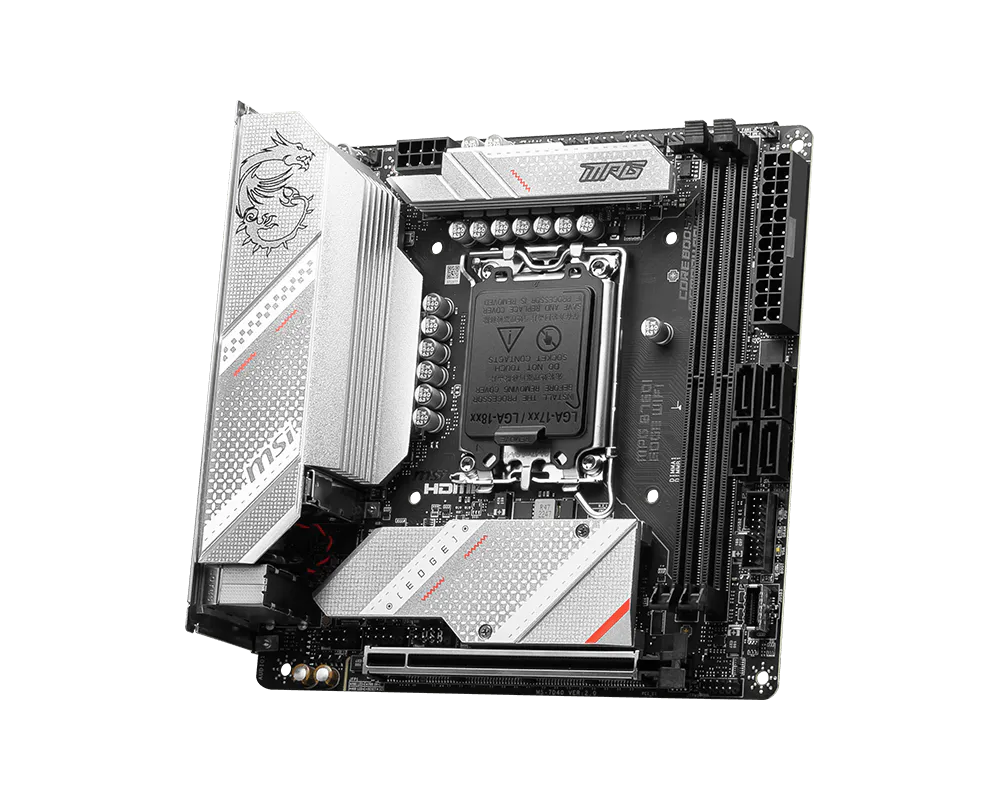

MSI MPG B760I Edge WiFi DDR5 Intel LGA1700 Mini-ITX Motherboard

Brand MSI

0 /5.0 (0 reviews)

SKU B760I EDGE WIFI

The MSI MPG B760I Edge WiFi DDR5 is a Mini-ITX B760 board for compact 12th, 13th and 14th Gen Intel builds, with Wi-Fi 6E and 2.5G LAN. It uses the B760 chipset and the LGA 1700 socket.

Key features

Supports Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors
2x DDR5, Maximum Memory Capacity 128GB
2x M.2 slots plus 4x SATA 6G
Realtek RTL8125BG 2.5Gbps LAN and Intel Wi-Fi 6E
Mini-ITX form factor (170mmx170mm)

Specifications

Chipset	Intel B760
CPU support	Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors
Socket	LGA 1700
Memory	2x DDR5, Maximum Memory Capacity 128GB
Memory support	7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Expansion slots	1x PCI-E x16 slot; PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
Storage	2x M.2; M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices; M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280 devices; 4x SATA 6G
Onboard graphics outputs	1x HDMI, 1x DisplayPort
USB	2x USB 2.0 (Rear); 2x USB 2.0 (Front); 4x USB 5Gbps Type A (Rear); 2x USB 5Gbps Type A (Front); 1x USB 10Gbps Type A (Rear); 1x USB 10Gbps Type C (Rear); 1x USB 10Gbps Type C (Front)
LAN	Realtek RTL8125BG 2.5Gbps LAN
Wireless	Intel Wi-Fi 6E
Audio	Realtek ALC897 Codec; 7.1-Channel High Definition Audio
Form factor	Mini-ITX 170mmx170mm
