Name: MSI MAG B760M Mortar WiFi II DDR5 Intel LGA1700 Micro-ATX Motherboard
Brand: MSI
SKU: B760M MORTAR WIFI II
Price: 5069.00 ZAR
Availability: InStock

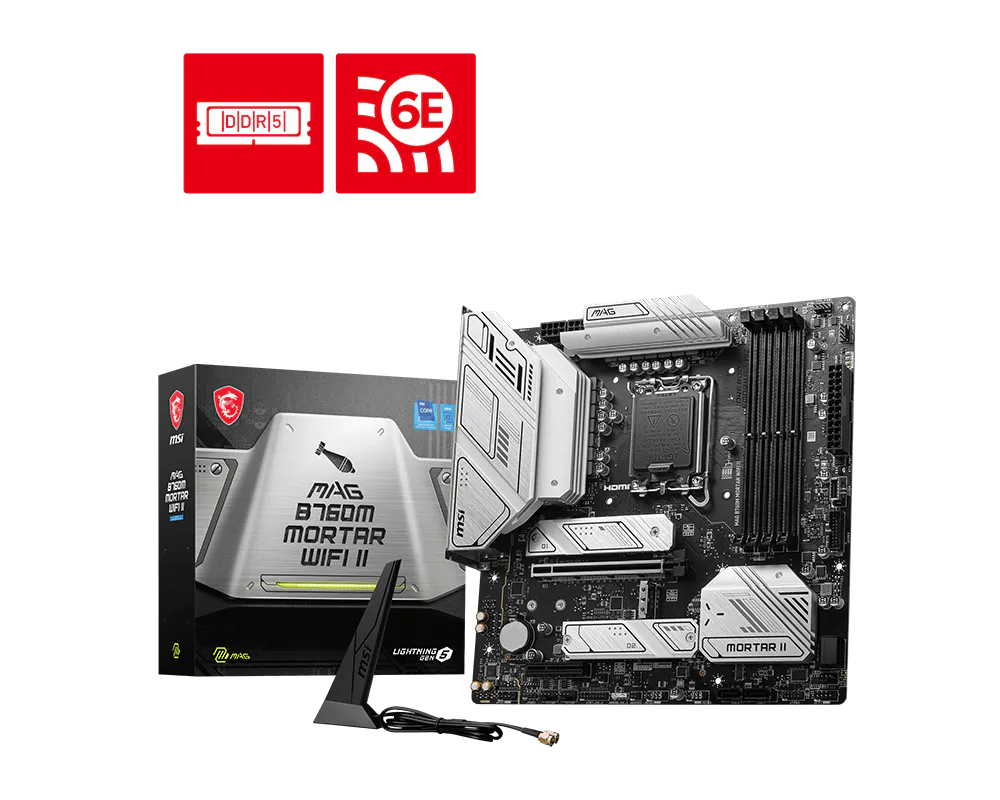

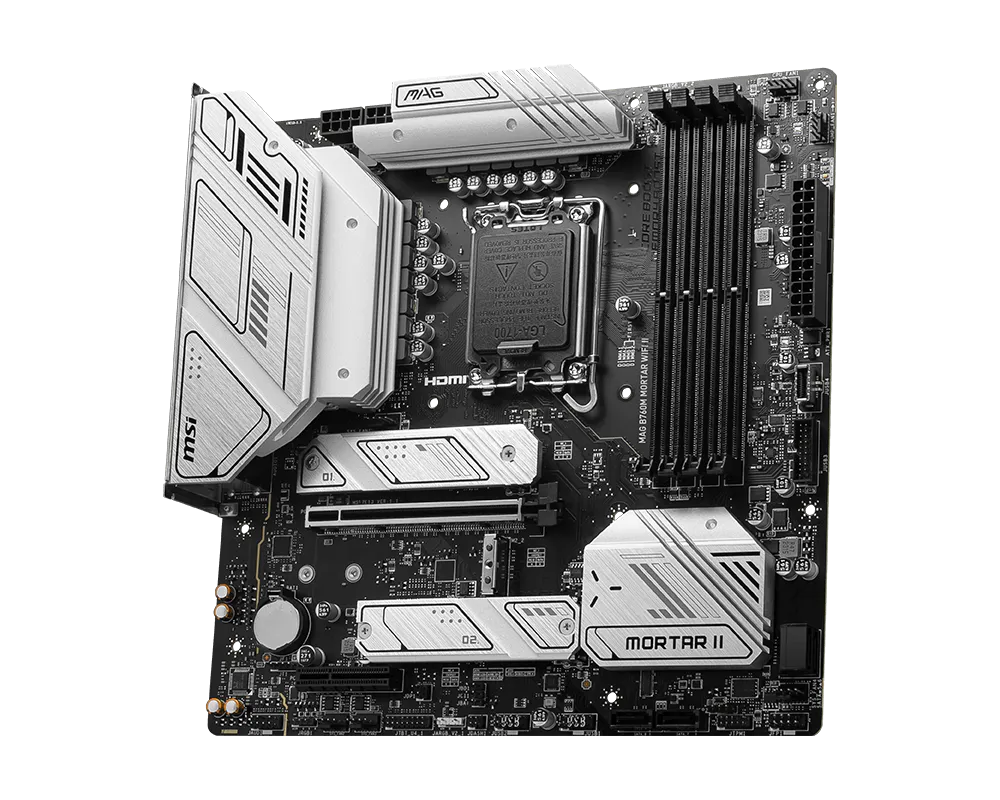

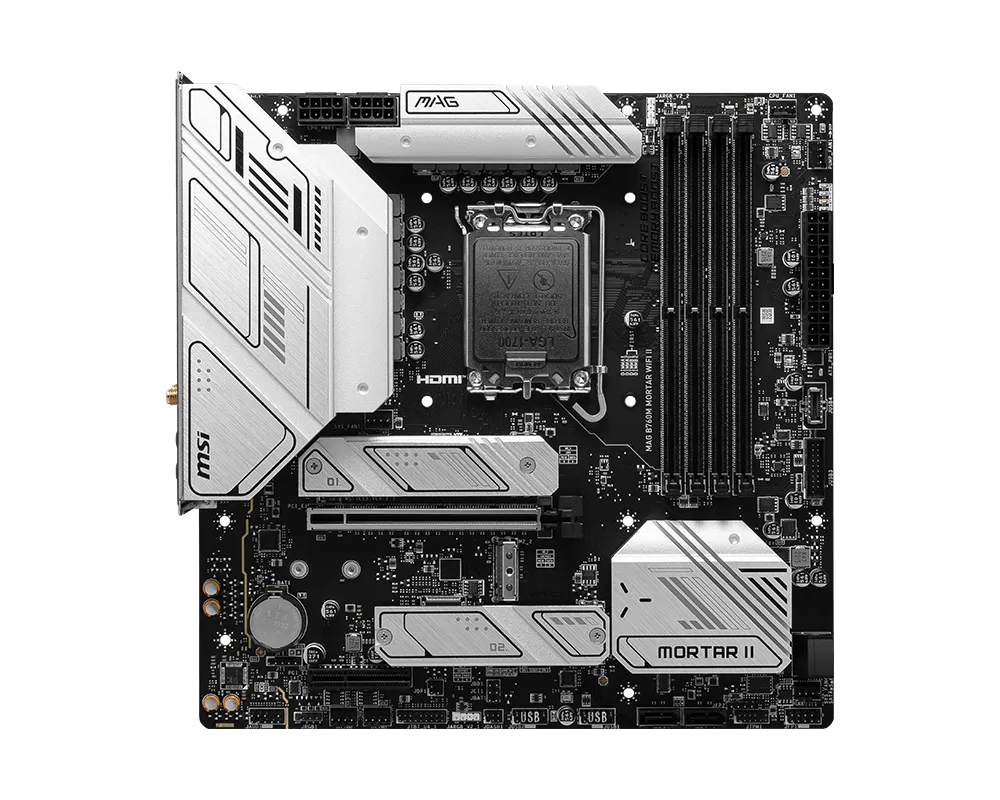

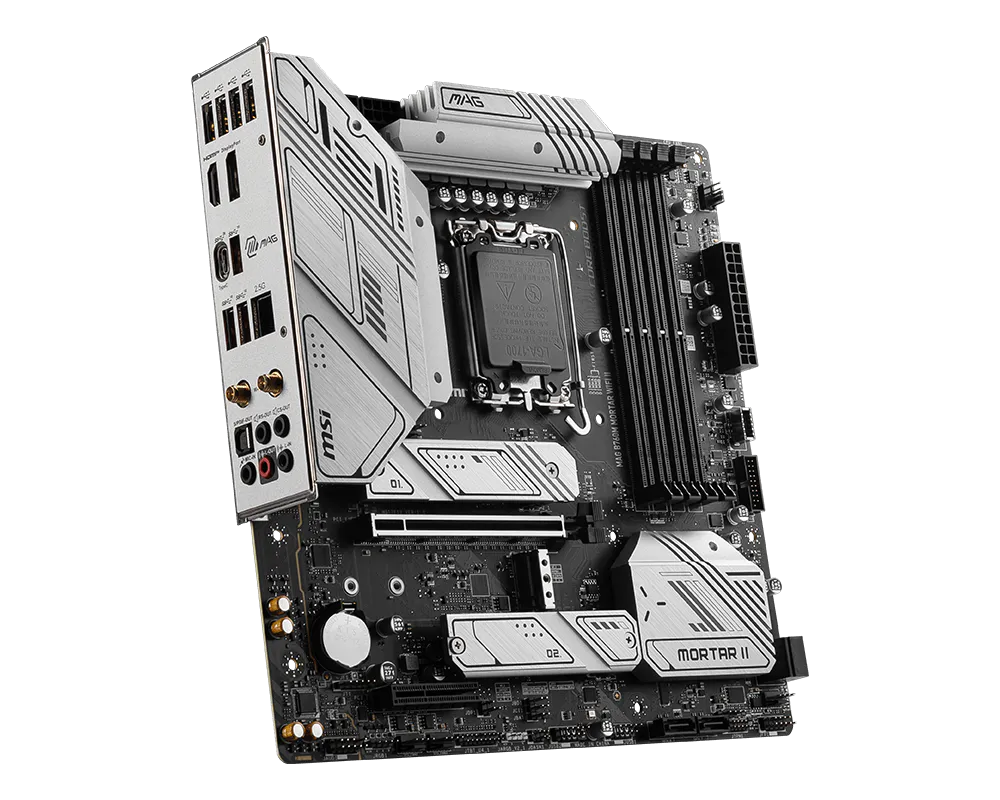

MSI MAG B760M Mortar WiFi II DDR5 Intel LGA1700 Micro-ATX Motherboard

Brand MSI

0 /5.0 (0 reviews)

SKU B760M MORTAR WIFI II

The MSI MAG B760M Mortar WiFi II DDR5 is a feature-rich Micro-ATX B760 board with four DDR5 slots, three M.2 slots and Wi-Fi 6E. It uses the B760 chipset and the LGA 1700 socket.

Key features

Supports Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors
4x DDR5, Maximum Memory Capacity 256GB
3x M.2 slots plus 4x SATA 6G
Realtek 2.5Gbps LAN and Intel Wi-Fi 6E
mATX form factor (243.84mmx243.84mm)

Specifications

Chipset	Intel B760
CPU support	Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors
Socket	LGA 1700
Memory	4x DDR5, Maximum Memory Capacity 256GB
Memory support	7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Expansion slots	1x PCI-E x16 slot; PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU); PCI_E2 Gen PCIe 3.0 supports up to x4 (From Chipset); 1x PCI-E x4 slot
Storage	3x M.2; M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices; M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices; M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280 devices; 4x SATA 6G
Onboard graphics outputs	1x HDMI, 1x DisplayPort
USB	4x USB 2.0 (Rear); 4x USB 2.0 (Front); 2x USB 5Gbps Type A (Front); 3x USB 10Gbps Type A (Rear); 1x USB 10Gbps Type C (Front); 1x USB 20Gbps Type C (Rear)
LAN	Realtek 2.5Gbps LAN
Wireless	Intel Wi-Fi 6E
Audio	Realtek ALC897 Codec; 7.1-Channel High Definition Audio
Form factor	mATX 243.84mmx243.84mm
