Name: MSI B850 Gaming Plus WiFi AMD AM5 ATX Motherboard
Brand: MSI
SKU: B850 GAMING PLUS WIFI
Price: 5359.00 ZAR
Availability: InStock

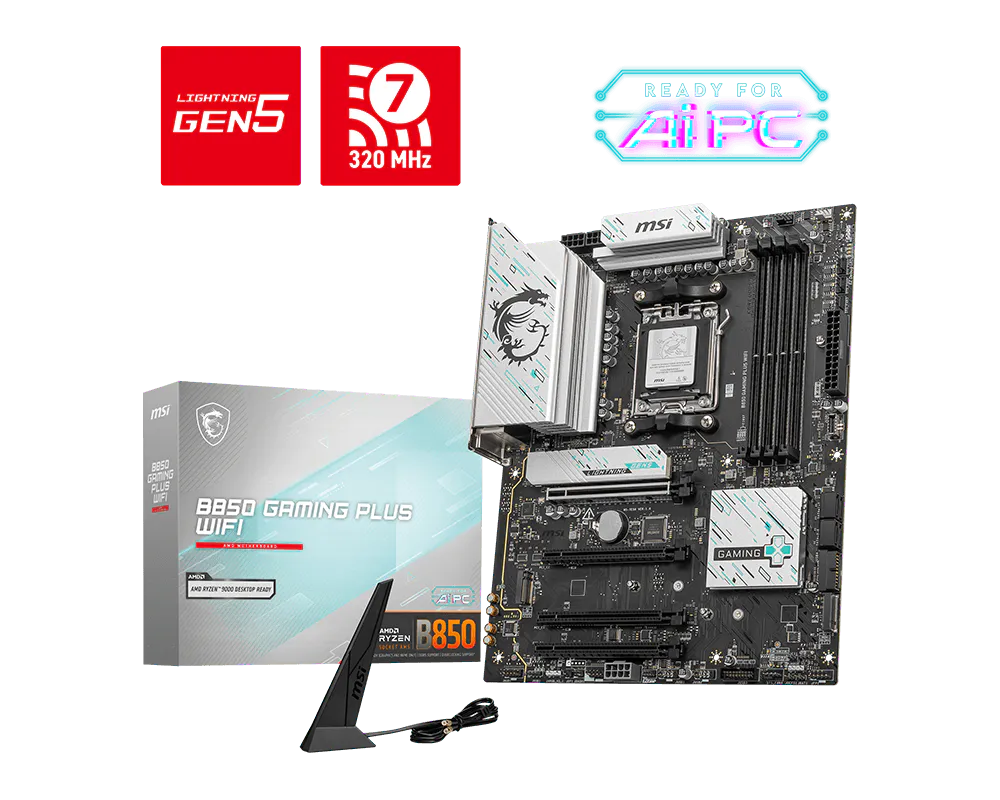

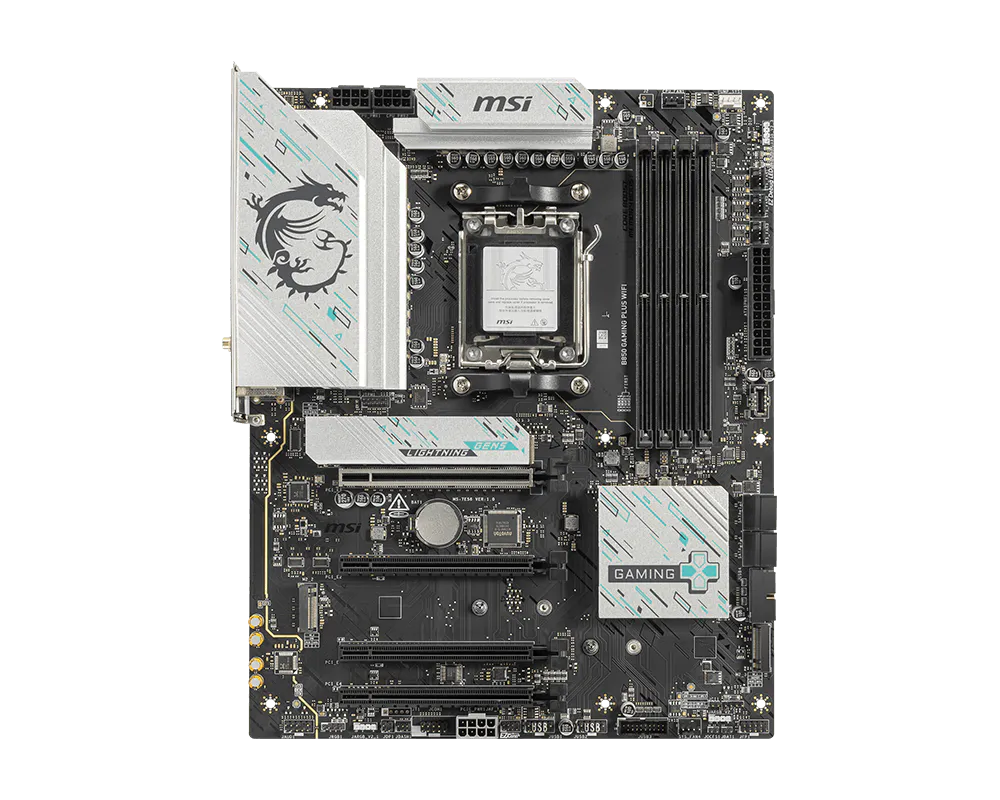

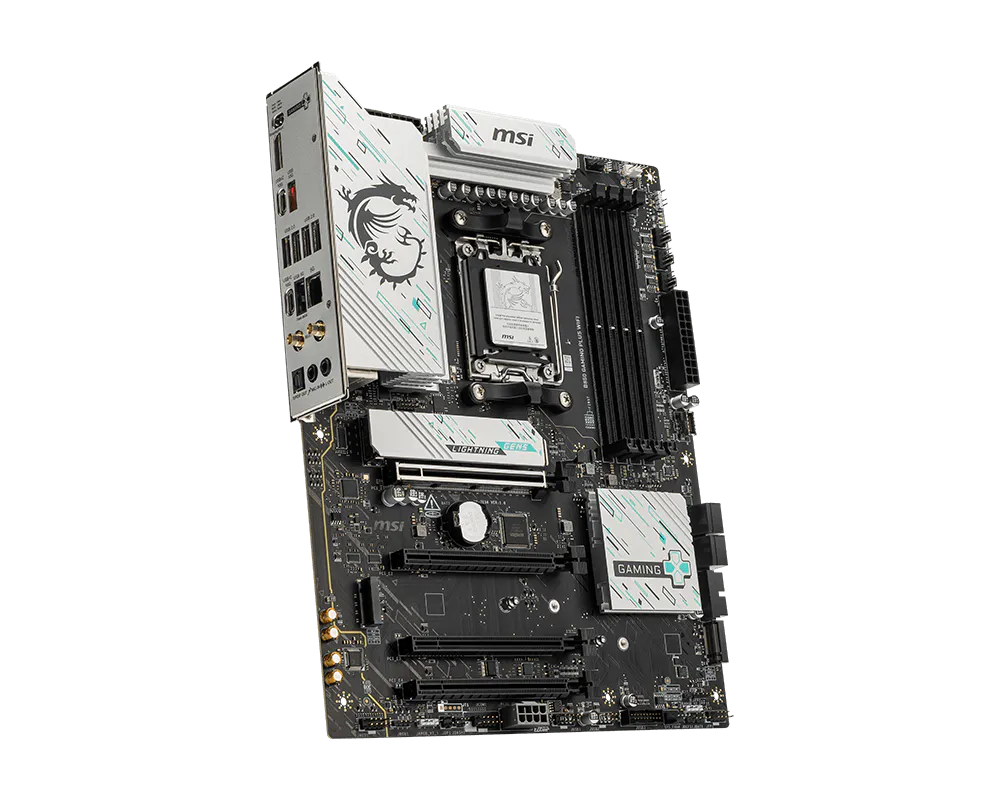

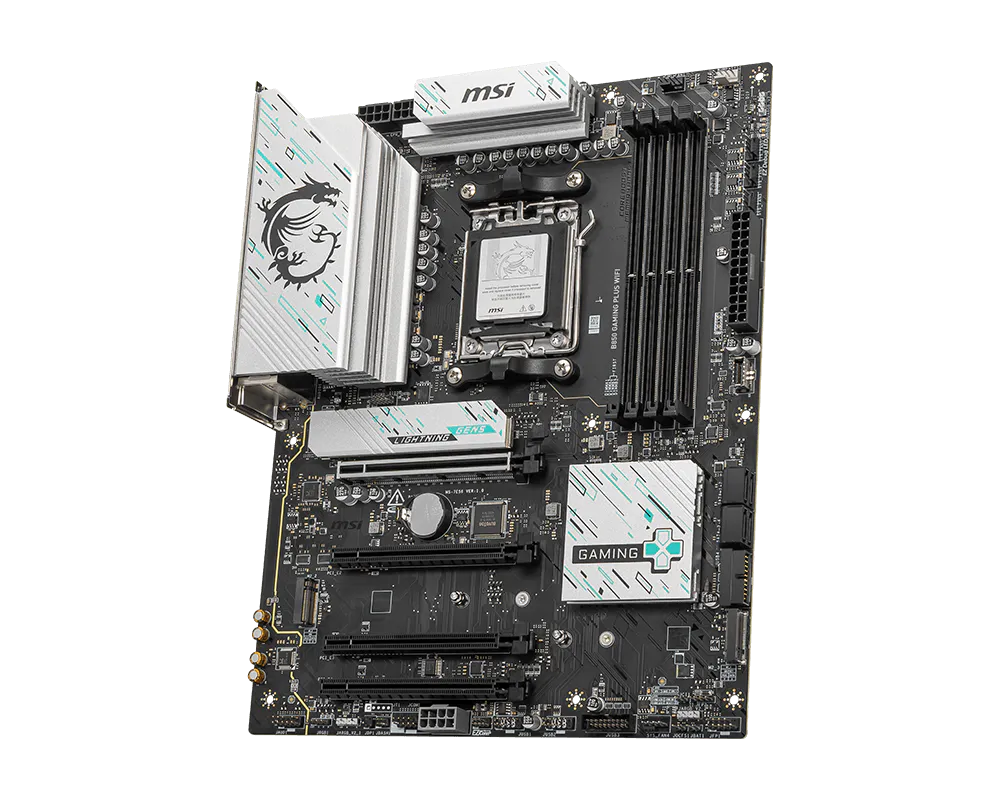

MSI B850 Gaming Plus WiFi AMD AM5 ATX Motherboard

Brand MSI

0 /5.0 (0 reviews)

SKU B850 GAMING PLUS WIFI

The MSI B850 Gaming Plus WiFi is an ATX B850 board for AMD Ryzen 9000, 8000 and 7000 processors with Wi-Fi 7, 5G LAN and a PCIe 5.0 M.2 slot. It uses the B850 chipset and the AM5 socket.

Key features

Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors
4x DDR5 UDIMM, Maximum Memory Capacity 256GB
3x M.2 slots plus 4x SATA 6G
Realtek 8126VB 5G LAN and Wi-Fi 7 Solution
ATX form factor (243.84mmx304.8mm)

Specifications

Chipset	AMD B850
CPU support	Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors
Socket	AM5
Memory	4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory support	DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
Expansion slots	4x PCI-E x16 slot; PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU); PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset); PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset); PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
Storage	3x M.2; M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices; M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280 devices; M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices; 4x SATA 6G
Onboard graphics outputs	1x DisplayPort
USB	4x USB 2.0 (Rear); 4x USB 2.0 (Front); 1x USB 5Gbps Type A (Rear); 4x USB 5Gbps Type A (Front); 1x USB 5Gbps Type C (Front); 1x USB 10Gbps Type A (Rear); 2x USB 10Gbps Type C (Rear)
LAN	Realtek 8126VB 5G LAN
Wireless	Wi-Fi 7 Solution
Audio	Realtek ALC897; 7.1-Channel High Definition Audio
Form factor	ATX 243.84mmx304.8mm
