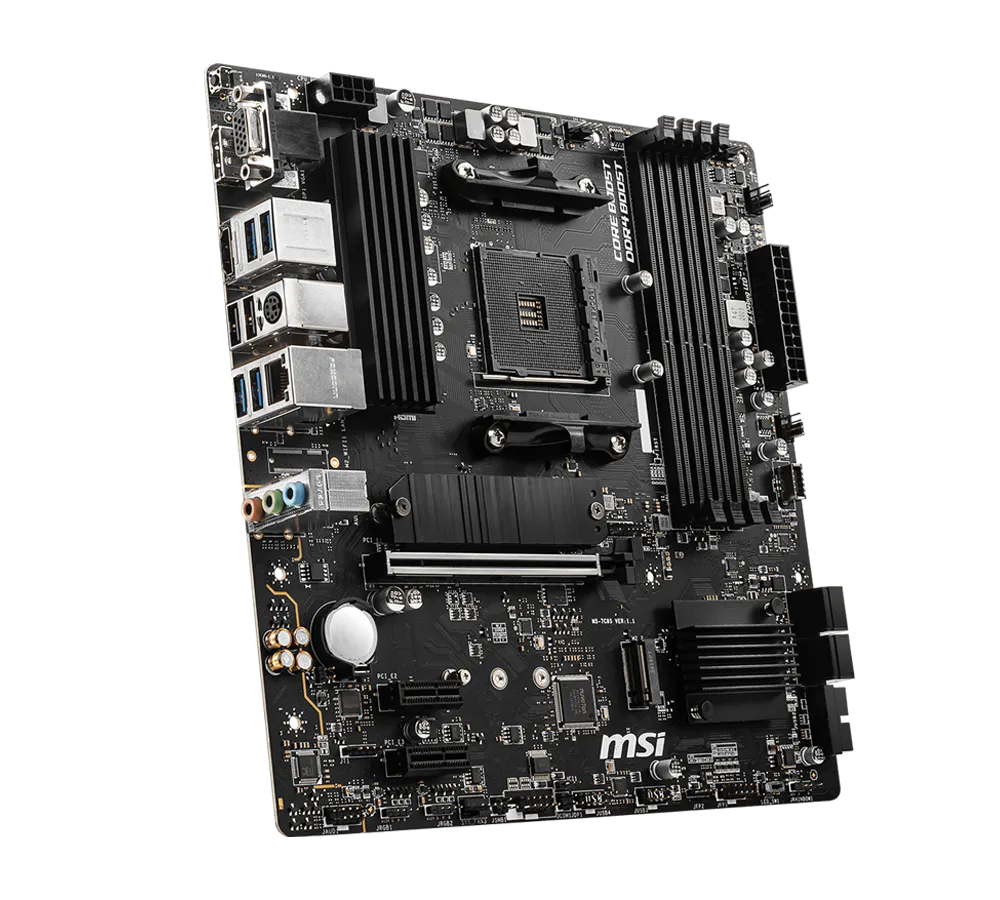

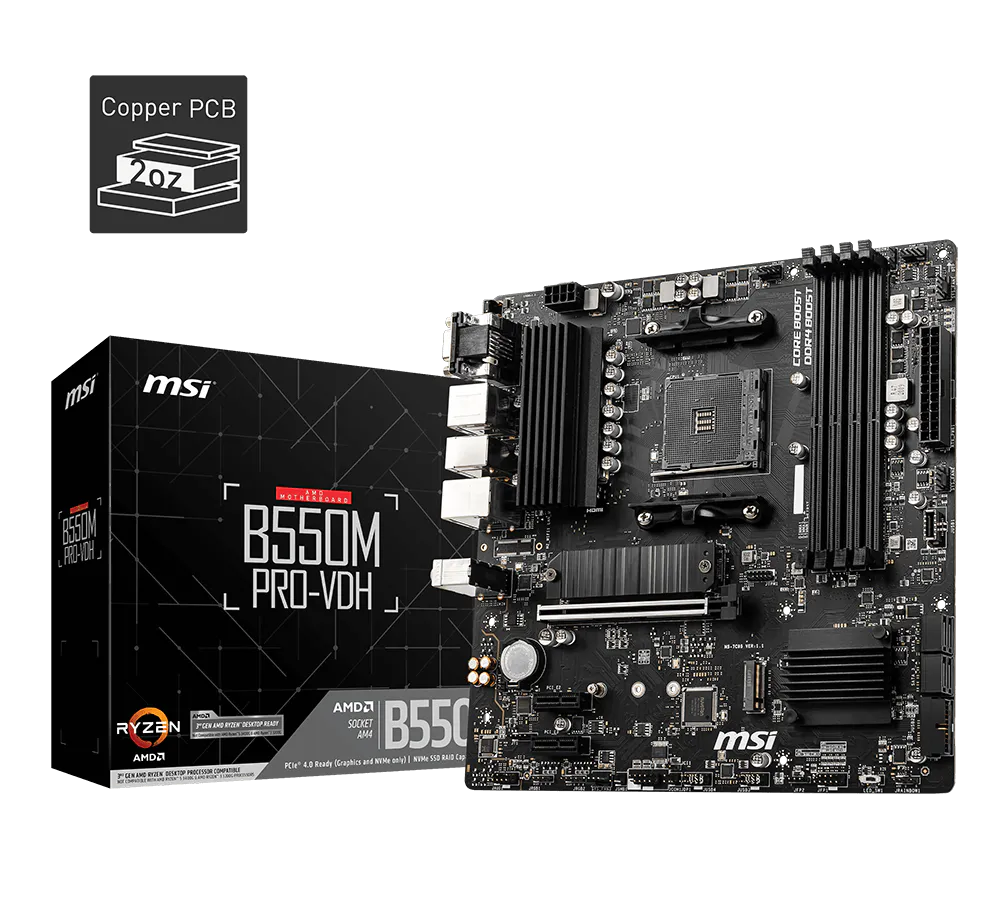

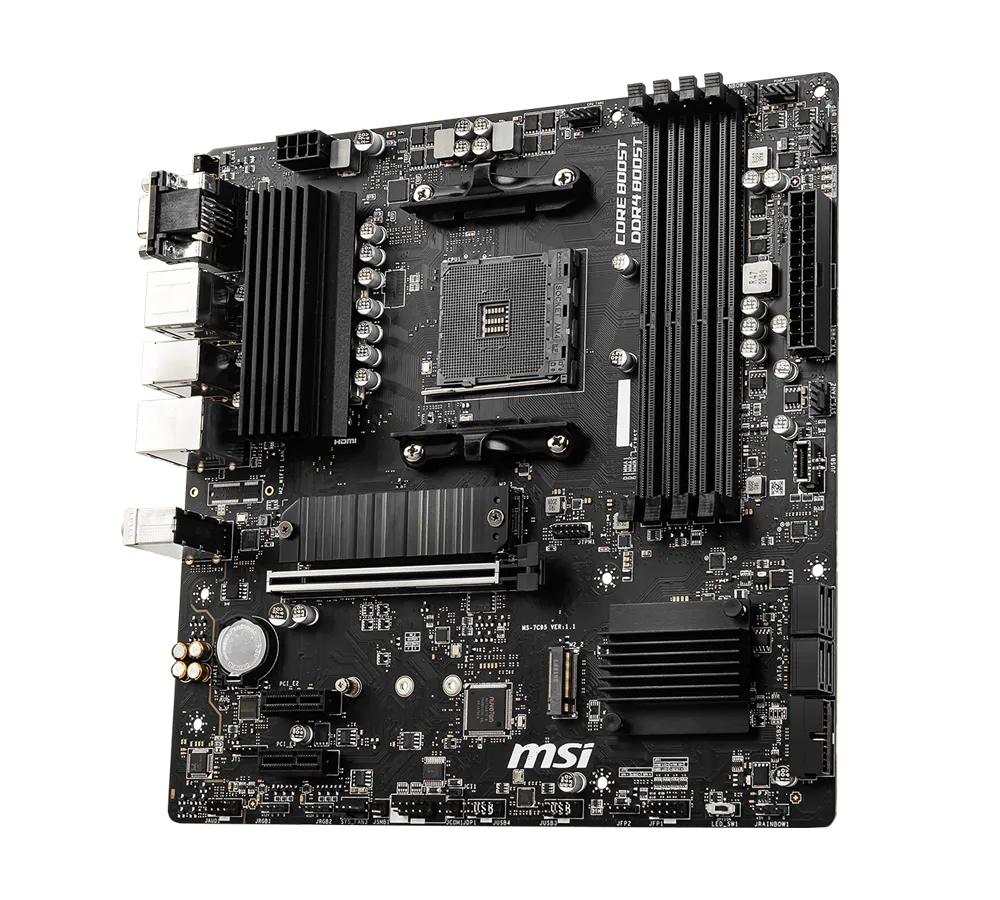

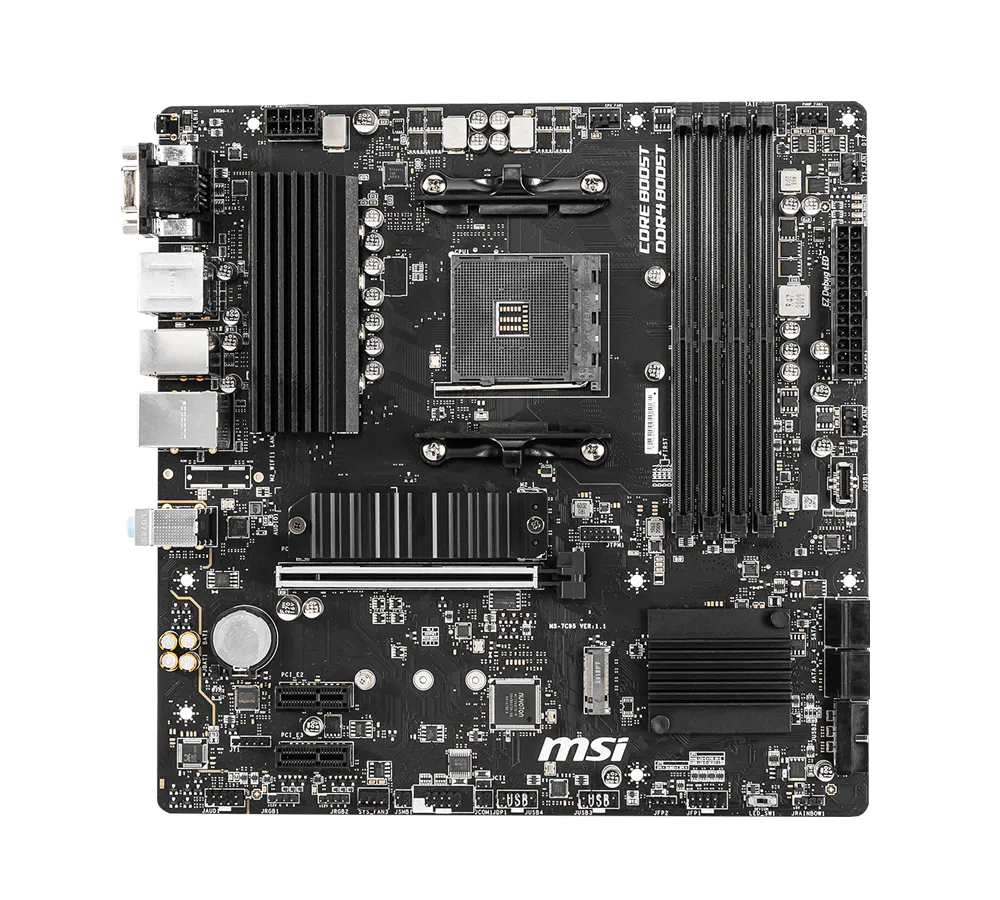

Name: MSI B550M PRO-VDH Micro-ATX Motherboard, AMD B550, AM4, DDR4
Brand: MSI
SKU: B550M PRO-VDH
Price: 2759.00 ZAR
Availability: InStock

MSI B550M PRO-VDH Micro-ATX Motherboard, AMD B550, AM4, DDR4

Brand MSI

0 /5.0 (0 reviews)

SKU B550M PRO-VDH

The MSI B550M PRO-VDH is a Micro-ATX AM4 board on the AMD B550 chipset, with four DDR4 slots and two M.2 slots. It has HDMI, DisplayPort and VGA outputs, which makes it a good match for Ryzen processors with built-in graphics.

Key features

AMD B550 chipset, Socket AM4
4x DDR4 slots, up to 128 GB, dual channel
2x M.2 slots and 4x SATA III
PCIe Gen4 support
HDMI, DisplayPort and VGA outputs
USB 3.2 Gen 1 Type-C on the rear

Specifications

Brand	MSI
Model	B550M PRO-VDH
Chipset	AMD B550
Socket	AM4
Memory	4x DDR4, max 128 GB, dual channel
Expansion	1x PCIe x16 (Gen4 / Gen3), 2x PCIe x1
Storage	2x M.2, 4x SATA III
RAID	0 / 1 / 10
USB rear	1x USB 3.2 Gen 1 Type-C, 2x USB 3.2 Gen 1 Type-A, 2x USB 2.0
Video out	1x DisplayPort, 1x VGA, 1x HDMI
Audio	Realtek ALC892 / ALC897
Form factor	mATX
