Name: Ubiquiti UniFi Protect NVR G2 4 Bay 10G SFP+ 2.5GbE HDMI
Brand: Ubiquiti
SKU: UNVR-G2
Price: 18575.00 ZAR
Availability: InStock

Ubiquiti UniFi Protect NVR G2 4 Bay 10G SFP+ 2.5GbE HDMI

0 /5.0 (0 reviews)

SKU UNVR-G2

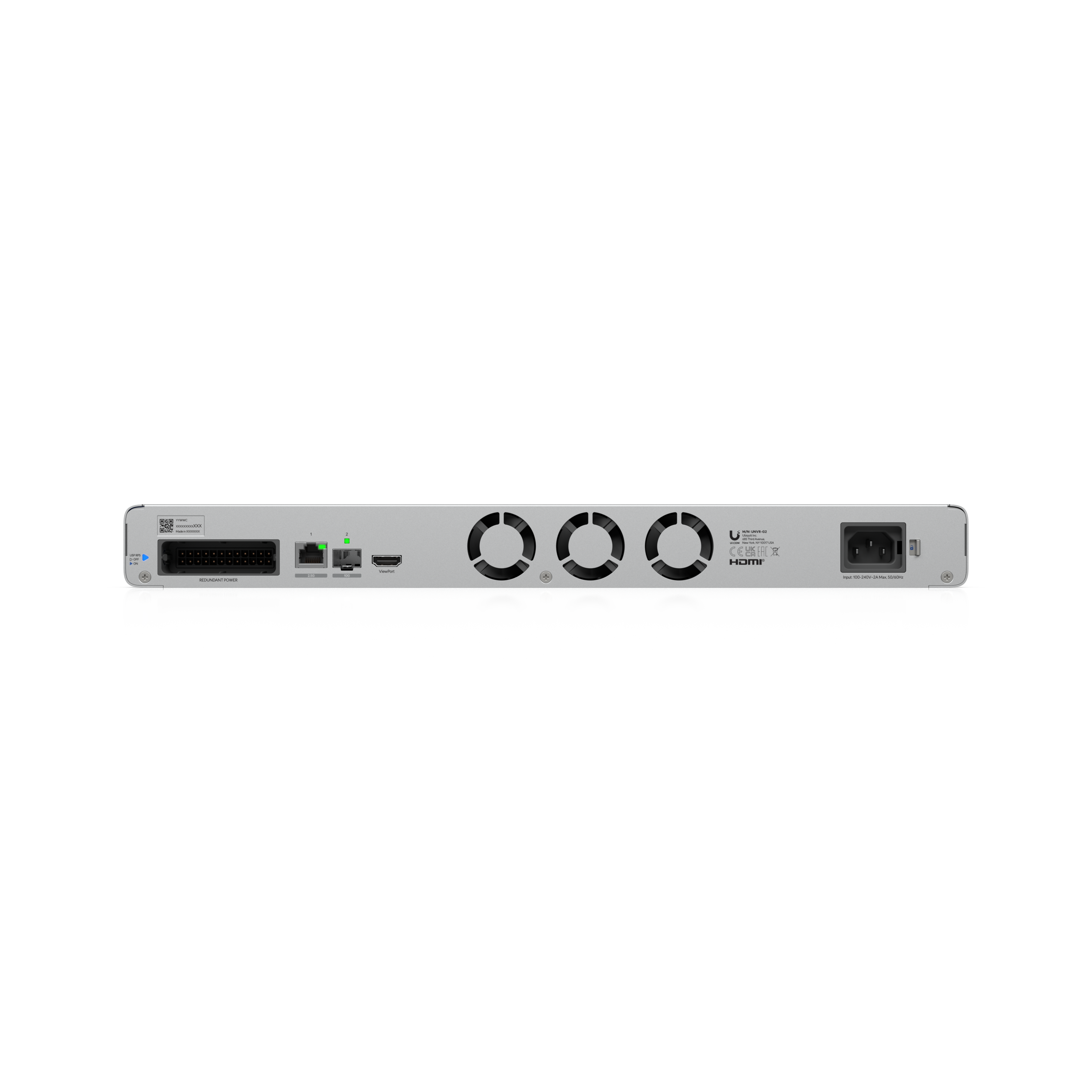

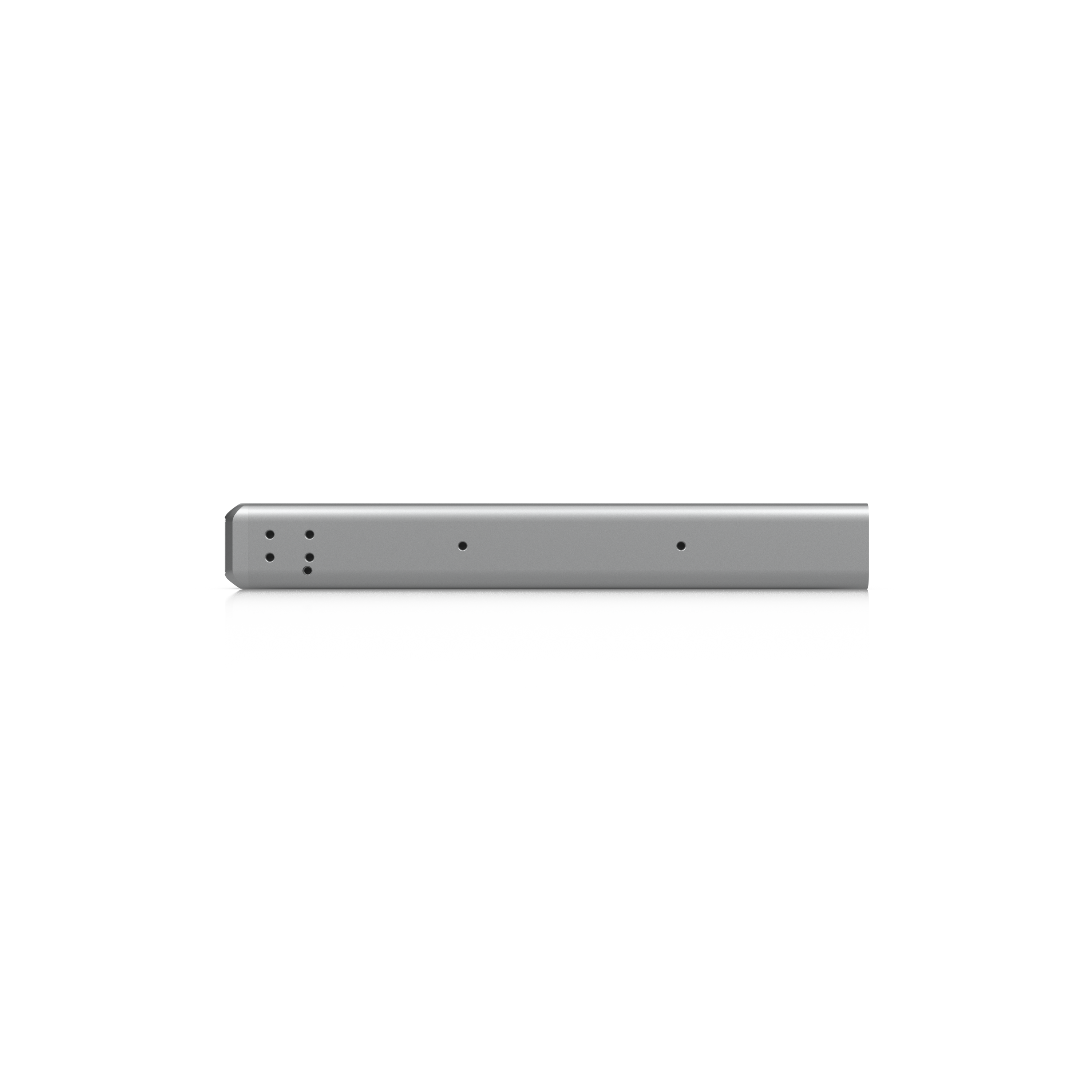

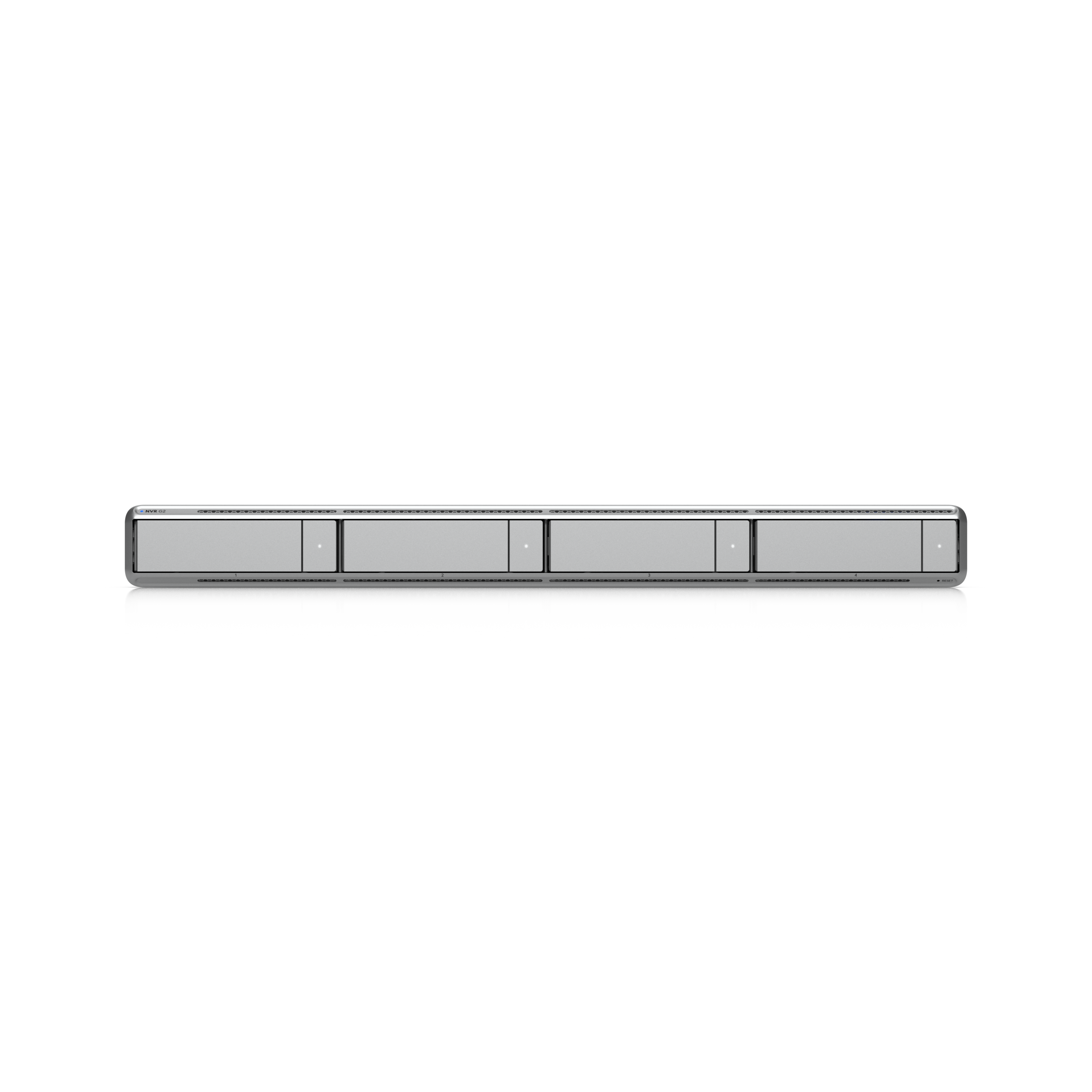

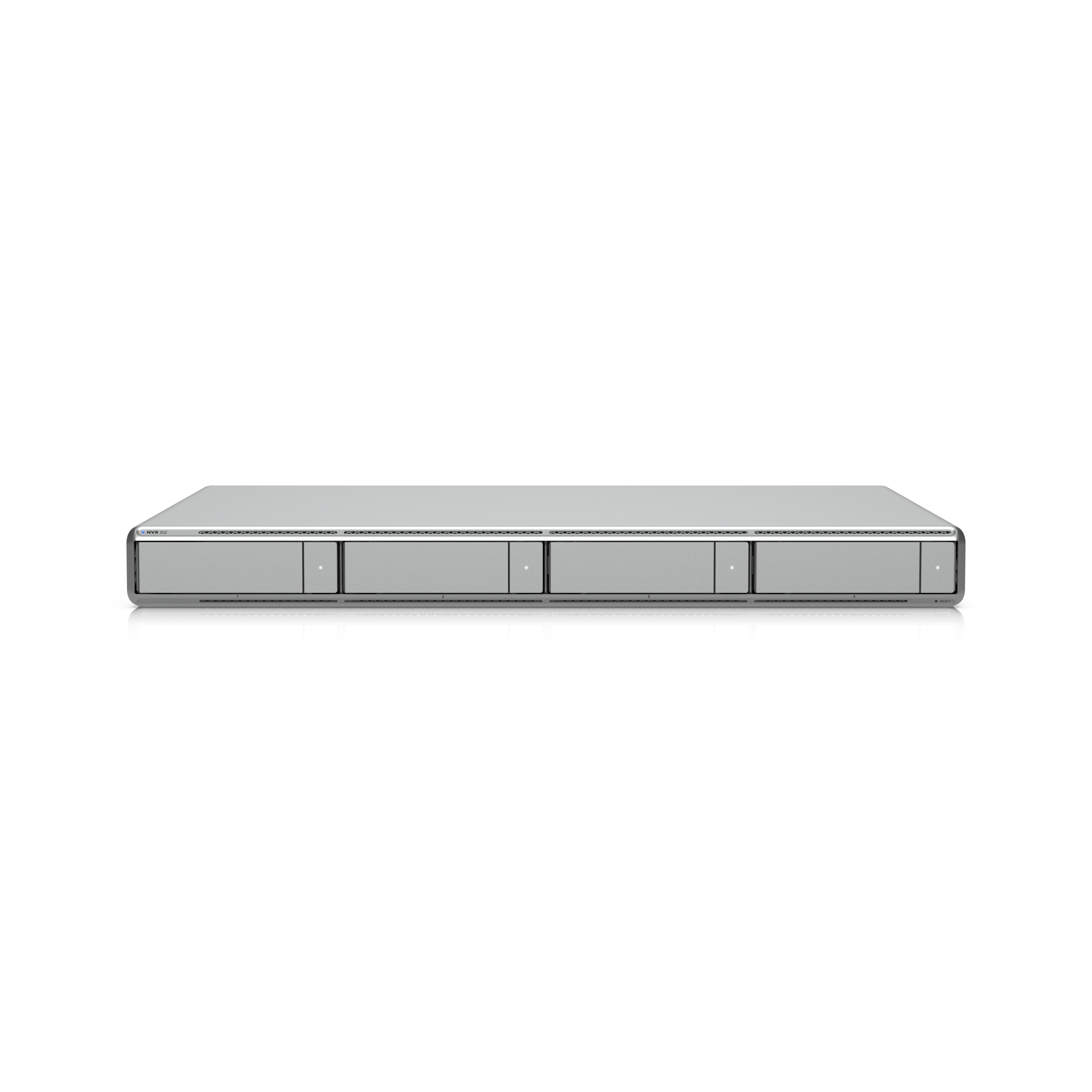

A 1U network video recorder for UniFi Protect camera systems. It has four drive bays, built-in AI event analytics and an HDMI output for a live viewing screen, and it handles up to 30 4K or 60 Full HD cameras.

Key features

Up to 60 HD, 50 2K or 30 4K cameras
Four 2.5/3.5 inch drive bays
10G SFP+ and 2.5 GbE ports
Built-in HDMI Viewport output
Also runs UniFi Access and Connect
Drives not included

Specifications

Dimensions	442.4 x 43.7 x 325 mm; (17.4 x 1.7 x 12.8")
Managed Cameras	With built-in HDMI Viewport disabled:; (60) HD; (50) 2K; (30) 4K; With built-in HDMI Viewport in use:; (40) HD; (30) 2K; (20) 4K
Max. Simultaneous Viewport Streams	16 4K cameras
Managed Access Hubs	150+
Storage Capacity	(4) 2.5/3.5" drive bays
Networking Interface	(1) 10G SFP+ port; (1) 2.5 GbE RJ45 port (SFP+ port does not support 1G speeds.)
Form Factor	Rack Mount (1U)
Management Application	UniFi Protect; UniFi Access; UniFi Connect
Hard Drive Capacity	(4) 2.5/3.5" HDD / SSD support
Max. Power Budget for Drives	75W
Max. Power Consumption	100W
Power Method	(1) Universal AC input, 100-240V AC, 2A Max., 50/60 Hz; (1) USP-RPS DC input, 11.5V DC
Power Supply	AC/DC, Internal PSU, 100W
Processor	Qualcomm® Kryo™ CPU built on Arm® Cortex® technology (4 nm); (1) Prime core (3.2 GHz); (4) Performance cores (2.8 GHz); (3) Efficiency cores (2.0 GHz)
Memory	8 GB
Weight	6 kg (13.2 lb)
Enclosure Material	SGCC steel
Ambient Operating Temperature	0 to 40° C (32 to 104° F)
