Name: Ubiquiti UniFi Protect Alarm Hub Kit 32 Zone PoE++
Brand: Ubiquiti
SKU: UP-ALARMHUB
Price: 9995.00 ZAR
Availability: InStock

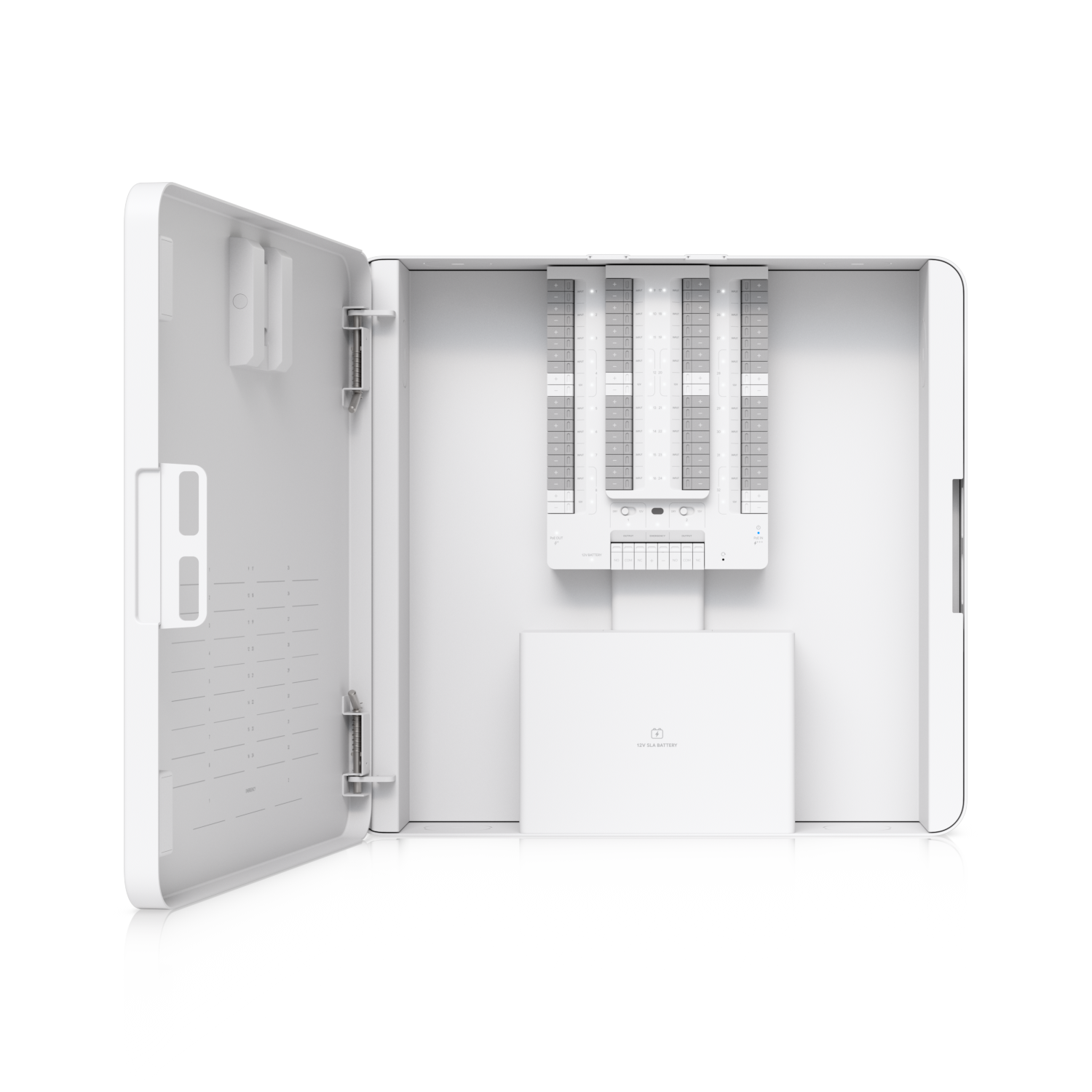

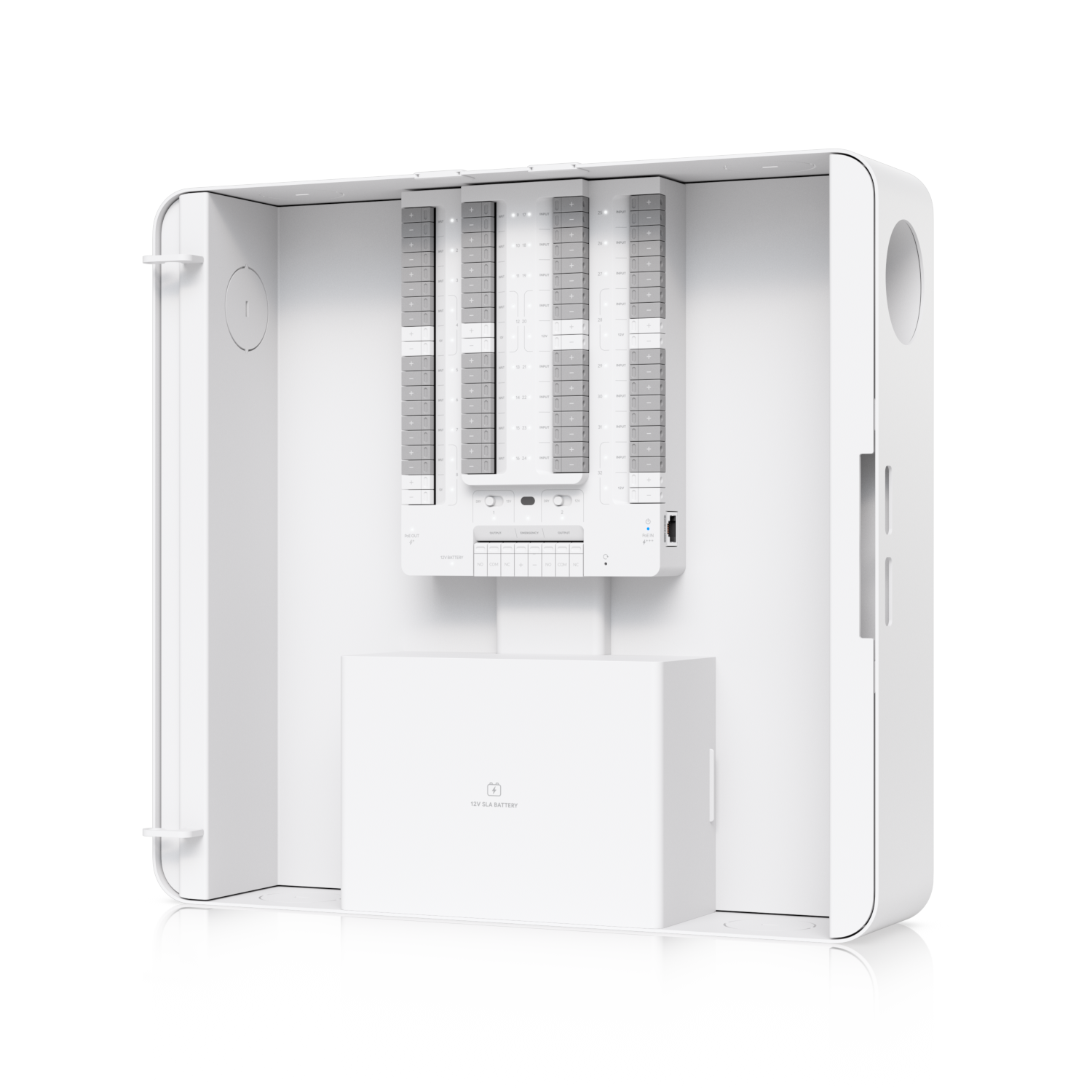

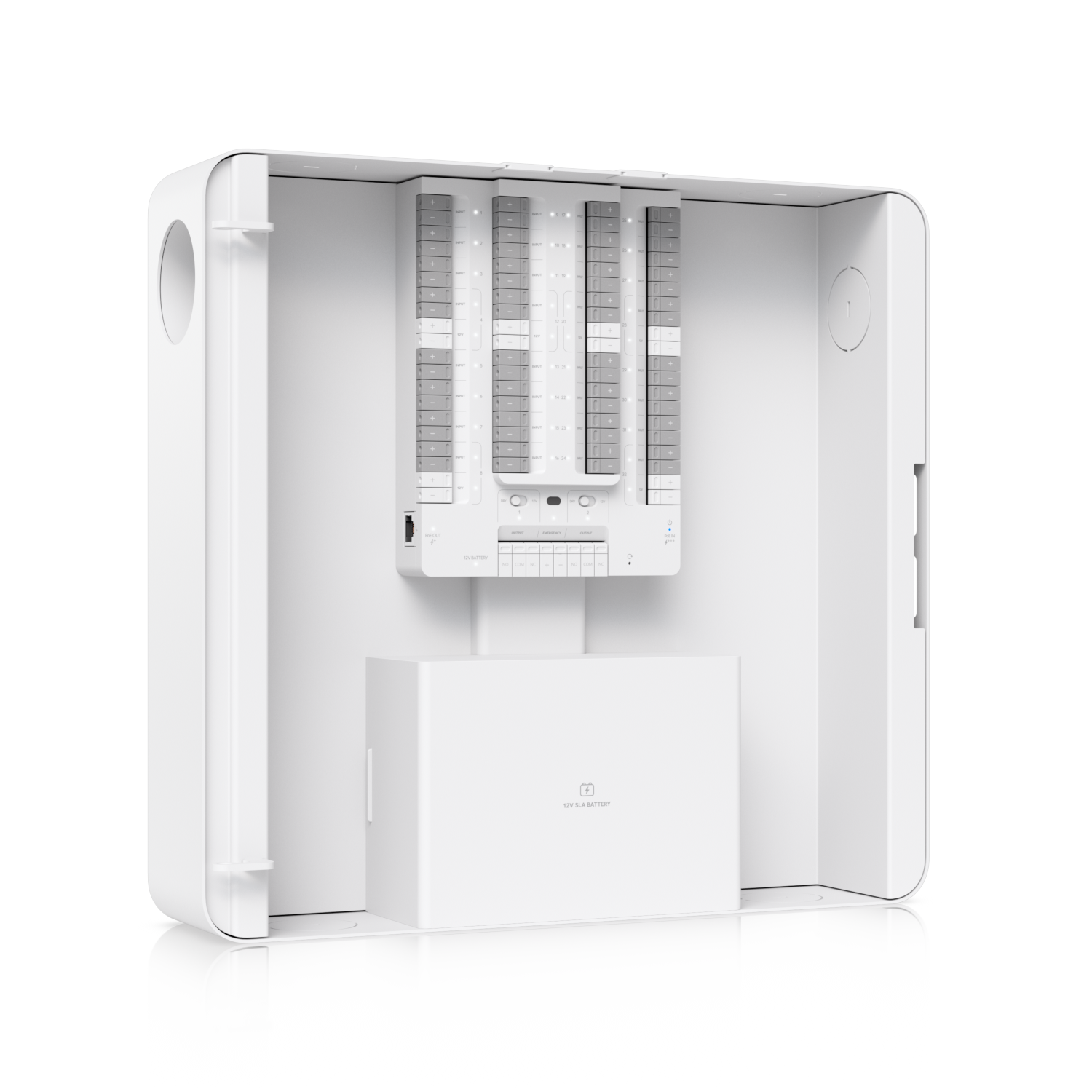

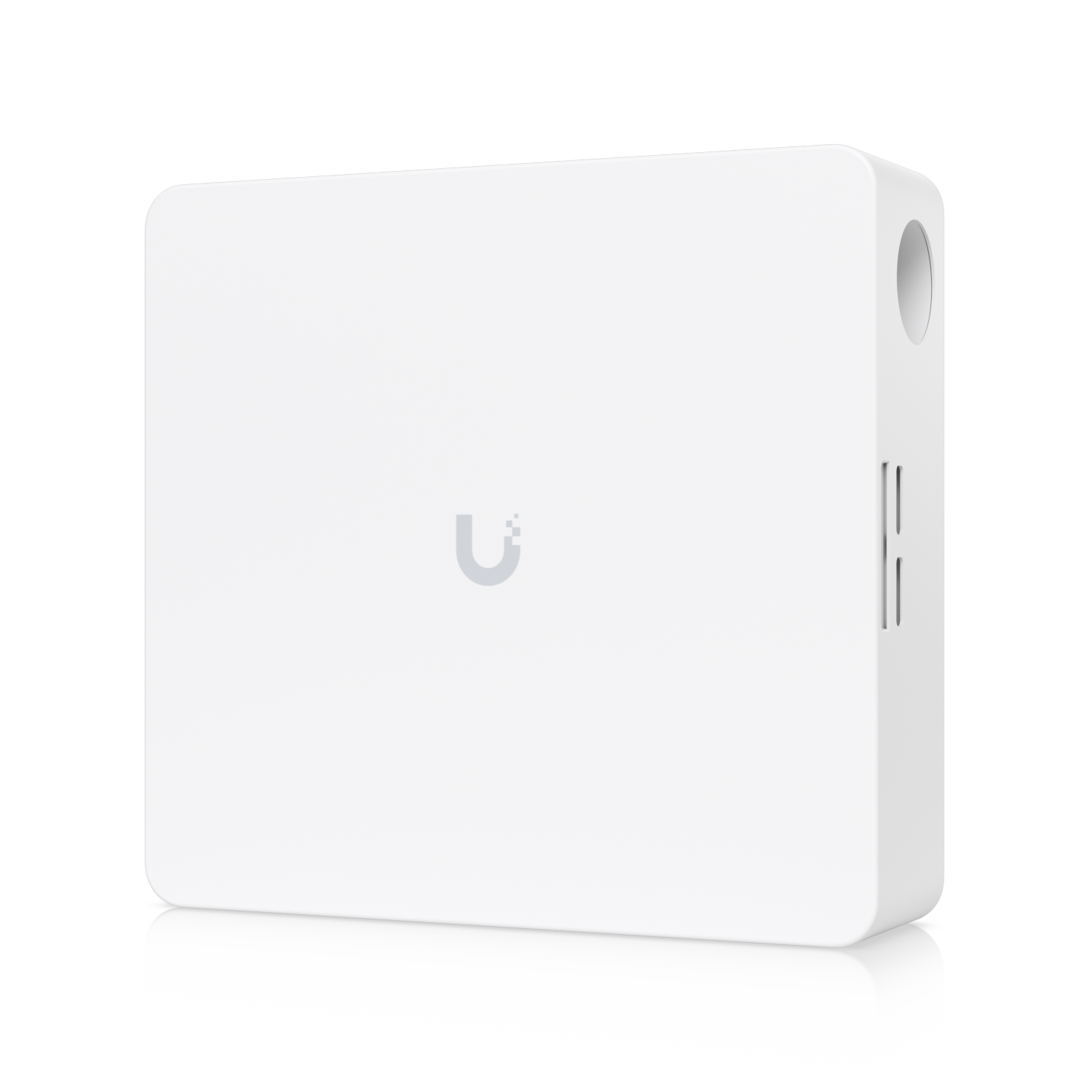

Ubiquiti UniFi Protect Alarm Hub Kit 32 Zone PoE++

0 /5.0 (0 reviews)

SKU UP-ALARMHUB

A 32-zone alarm control hub that brings wired intrusion sensors into UniFi Protect. It is powered over PoE++ or PoE+++, takes a 12V backup battery, and has relay outputs for sirens or other devices.

Key features

32 wired alarm inputs plus emergency input
Two wet/dry relay outputs
PoE++/PoE+++ powered with 12V SLA battery backup
PoE+ output for a connected device
Wall-mount steel housing, indoor use

Specifications

Dimensions	379 x 355 x 105 mm (15 x 14 x 4.1")
Input Terminals	(32) Alarm sensor; (1) Emergency
Power Method	PoE++/PoE+++; 12V SLA battery
Power Output Availability	PoE+++ input: 68W; PoE++ input: 42W
Weight	Device: 8.3 kg (18.3 lb); Mount: 624 g (1.4 lb)
Enclosure Material	SGCC steel housing with polycarbonate cover
Mounting	Wall
Digital Input	(32) Inputs for alarm sensor (Compatible with EOL resistors: 1-5.6kΩ, 1kΩ included); (1) Emergency
Output Relay	(2) Wet/Dry; Wet: 12V DC, 1A; Dry: 30V DC, 1A
Aux Power Output	For sensor: (3) 12V DC, 1A right side total,; (3) 12V DC, 1A left side total
Indoor and Outdoor Use	Indoor only
Ambient Operating Temperature	-10 to 40° C (14 to 104° F)
Networking Interface	(1) 10/100 MbE RJ45 port
PoE Interface	(1) PoE++/PoE+++ input, 54V DC, 60W/90W; (1) PoE+ output, 54V DC, 30W
Max. Power Consumption	90W
Battery Charge	SLA backup battery, 12V, 0.3A
Certifications	CE, FCC, IC
