Name: Ubiquiti UniFi U7 Pro Max WiFi 7 Tri-Band Access Point 2.5GbE
Brand: Ubiquiti
SKU: U7-PRO-MAX
Price: 6695.00 ZAR
Availability: InStock

Ubiquiti UniFi U7 Pro Max WiFi 7 Tri-Band Access Point 2.5GbE

0 /5.0 (0 reviews)

SKU U7-PRO-MAX

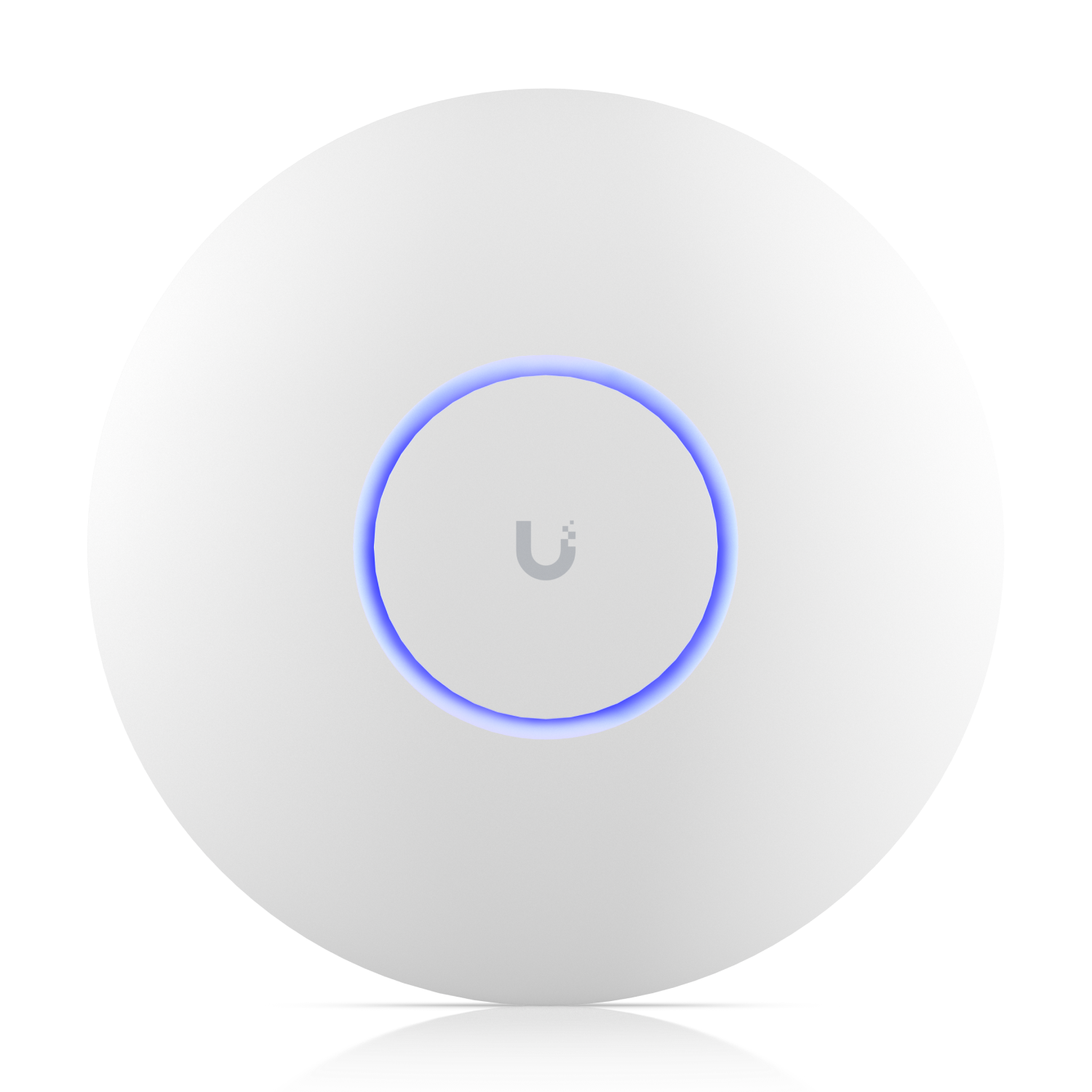

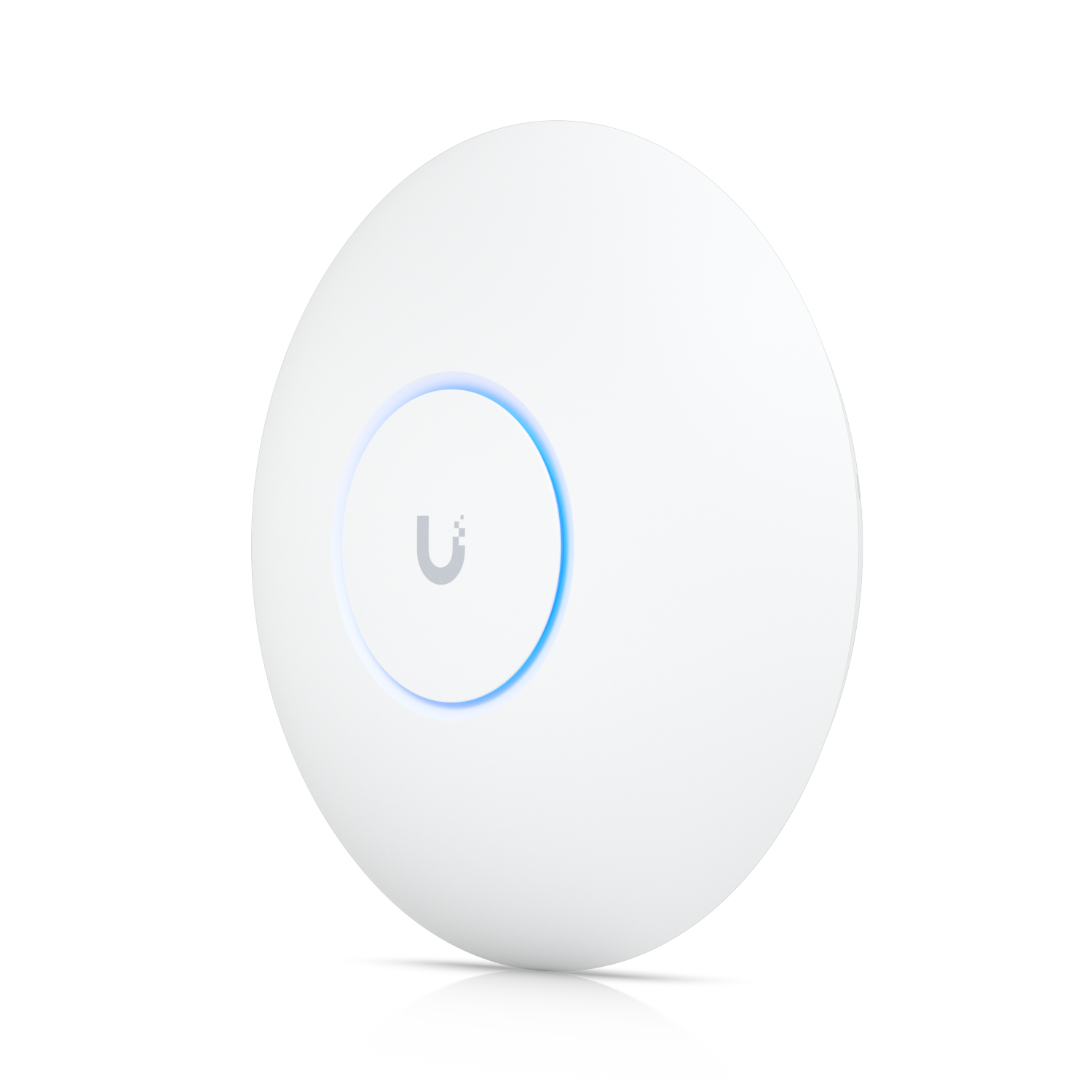

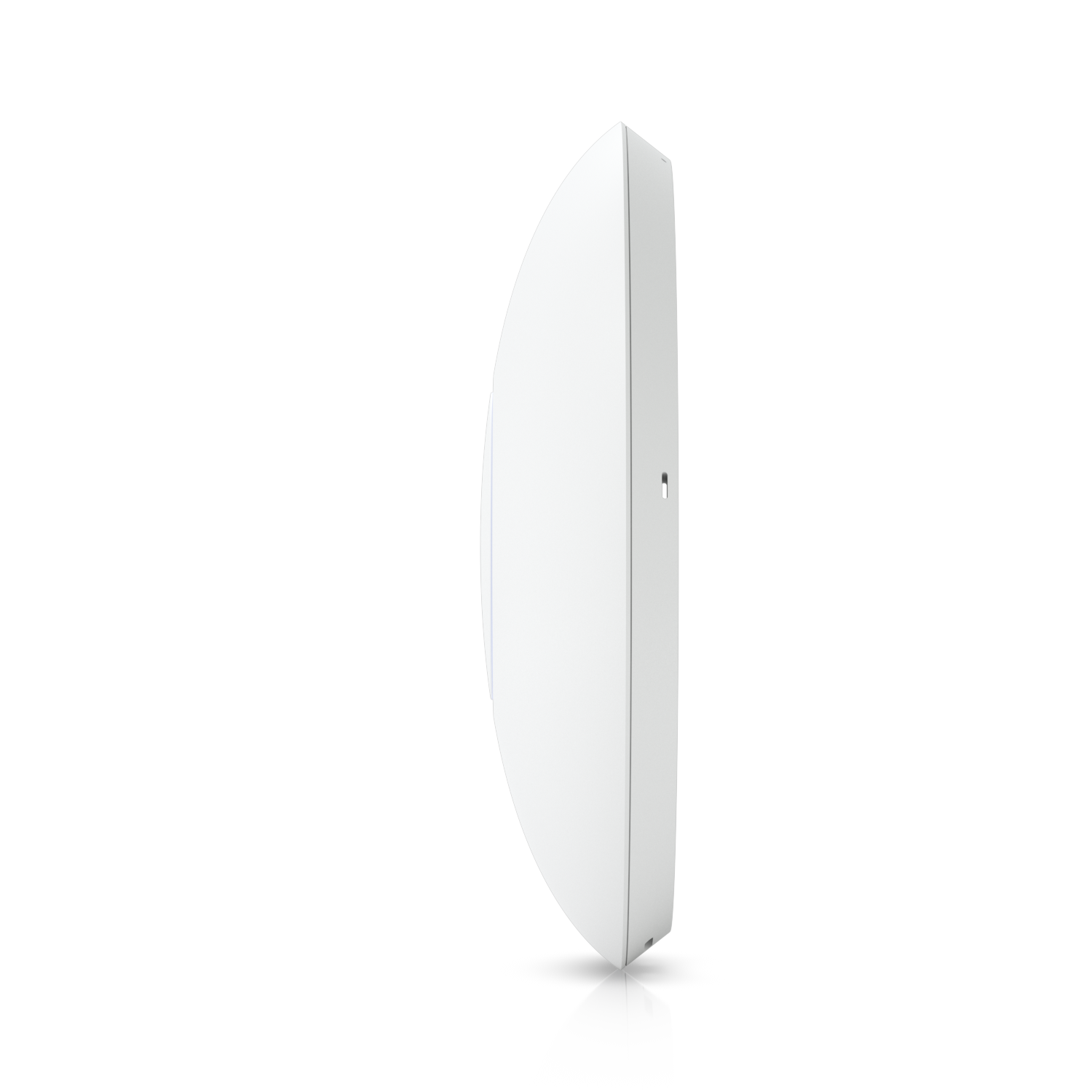

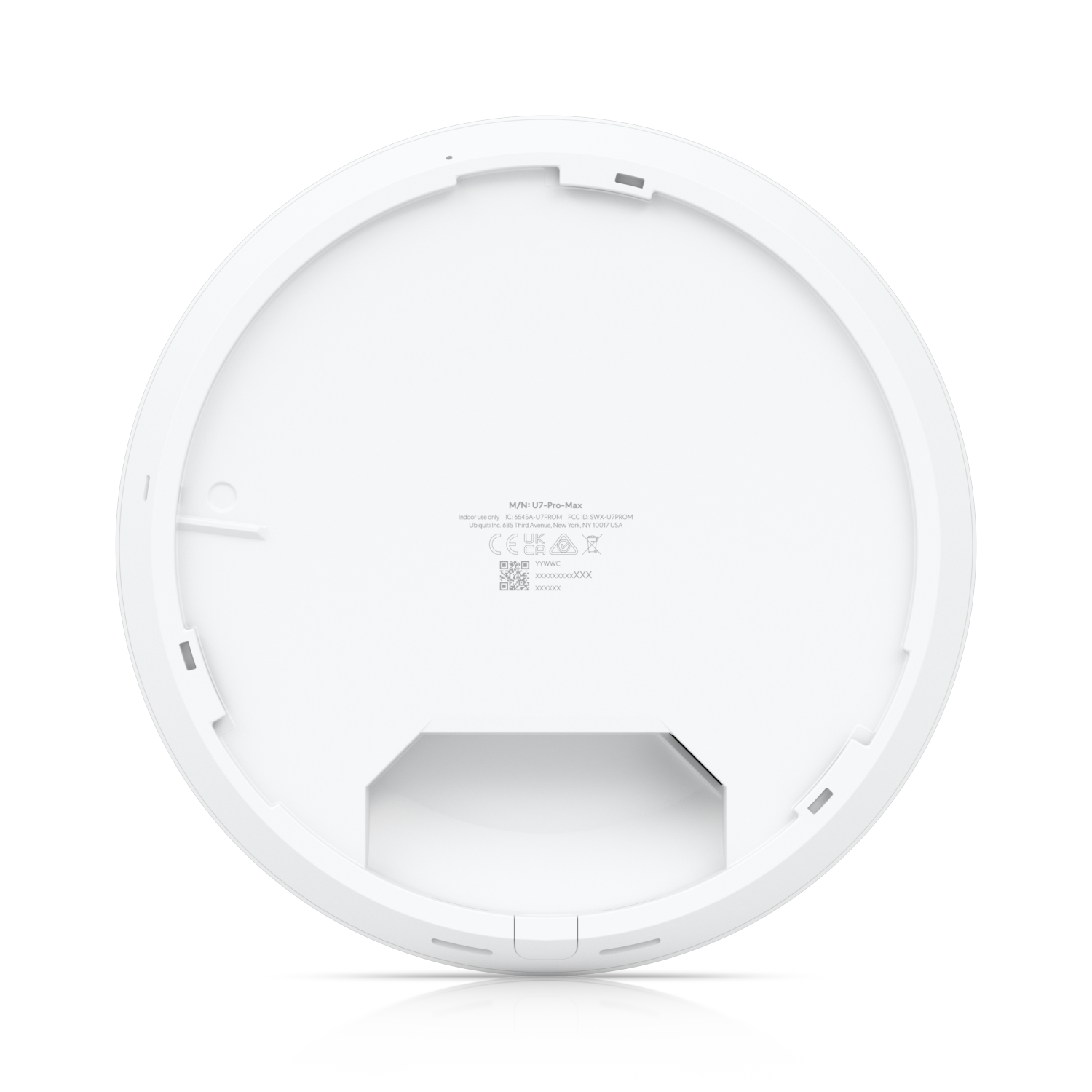

The U7 Pro Max is a ceiling-mounted WiFi 7 access point for busy offices, schools and larger homes. It runs 6 GHz, 5 GHz and 2.4 GHz radios with 8 spatial streams and has a dedicated scanning radio that keeps watch on interference. It powers from PoE+ and uplinks over 2.5 GbE.

Key features

WiFi 7 with 6 GHz support and 8 spatial streams
Up to 160 square metres coverage and 500+ clients
2.5 GbE uplink, powered by PoE+
Real-time spectral analysis and Zero-Wait DFS
Managed through UniFi Network with roaming and guest portal features
Ceiling or wall mount, Pro mount included

Specifications

Dimensions	⌀206 x 46 mm; (⌀8.1 x 1.8")
WiFi Standard	WiFi 7 (With 6 GHz support)
Spatial Streams	8
Coverage Area	160 m² (1,750 ft²)
Max. Client Count	500+
Uplink	2.5 GbE
Mounting	Ceiling, Wall; (Pro Mount Included)
Power Method	PoE+
MIMO (6 GHz)	2 x 2 (DL/UL MU-MIMO)
MIMO (5 GHz)	4 x 4 (DL/UL MU-MIMO)
MIMO (2.4 GHz)	2 x 2 (DL/UL MU-MIMO)
Max. Data Rate (6 GHz)	5.8 Gbps (BW320)
Max. Data Rate (5 GHz)	8.6 Gbps (BW240)
Max. Data Rate (2.4 GHz)	688 Mbps (BW40)
Antenna Gain (6 GHz)	5.9 dBi
Antenna Gain (5 GHz)	6 dBi
Antenna Gain (2.4 GHz)	4 dBi
Max. TX Power (6 GHz)	23 dBm
