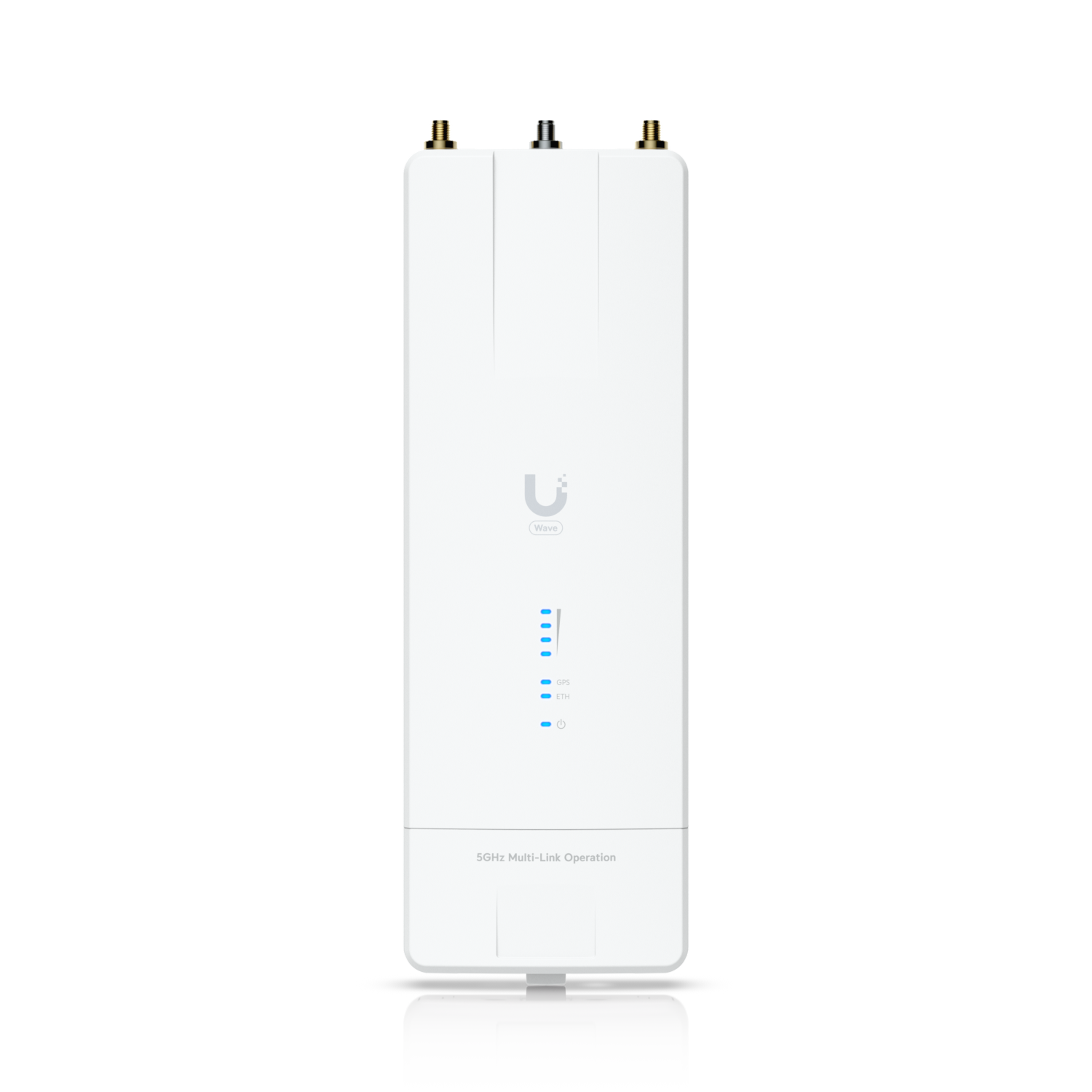

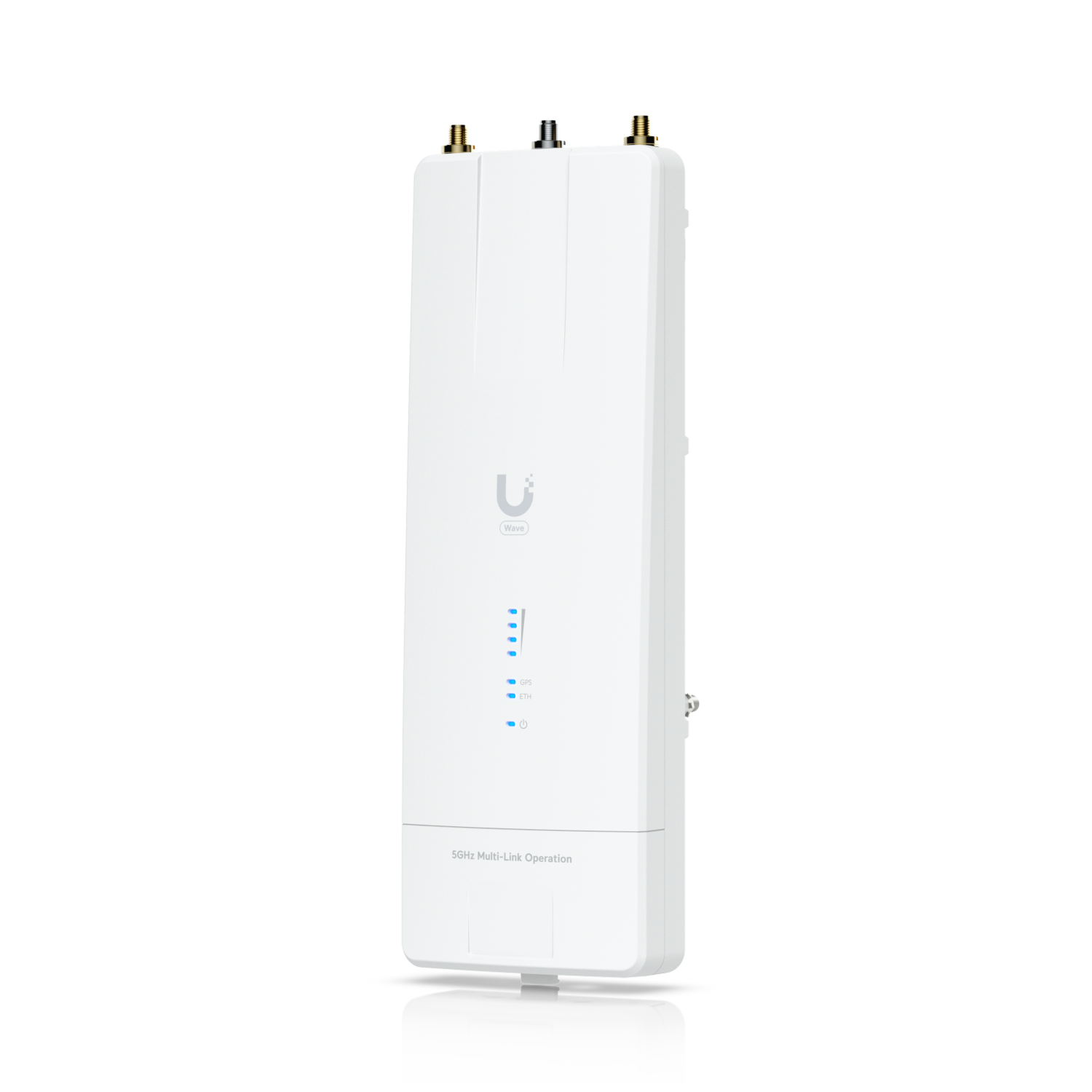

Name: Ubiquiti UISP Wave MLO5 5GHz WiFi 7 Point to Point Radio
Brand: Ubiquiti
SKU: WAVE-MLO5
Price: 9375.00 ZAR
Availability: InStock

Ubiquiti UISP Wave MLO5 5GHz WiFi 7 Point to Point Radio

0 /5.0 (0 reviews)

SKU WAVE-MLO5

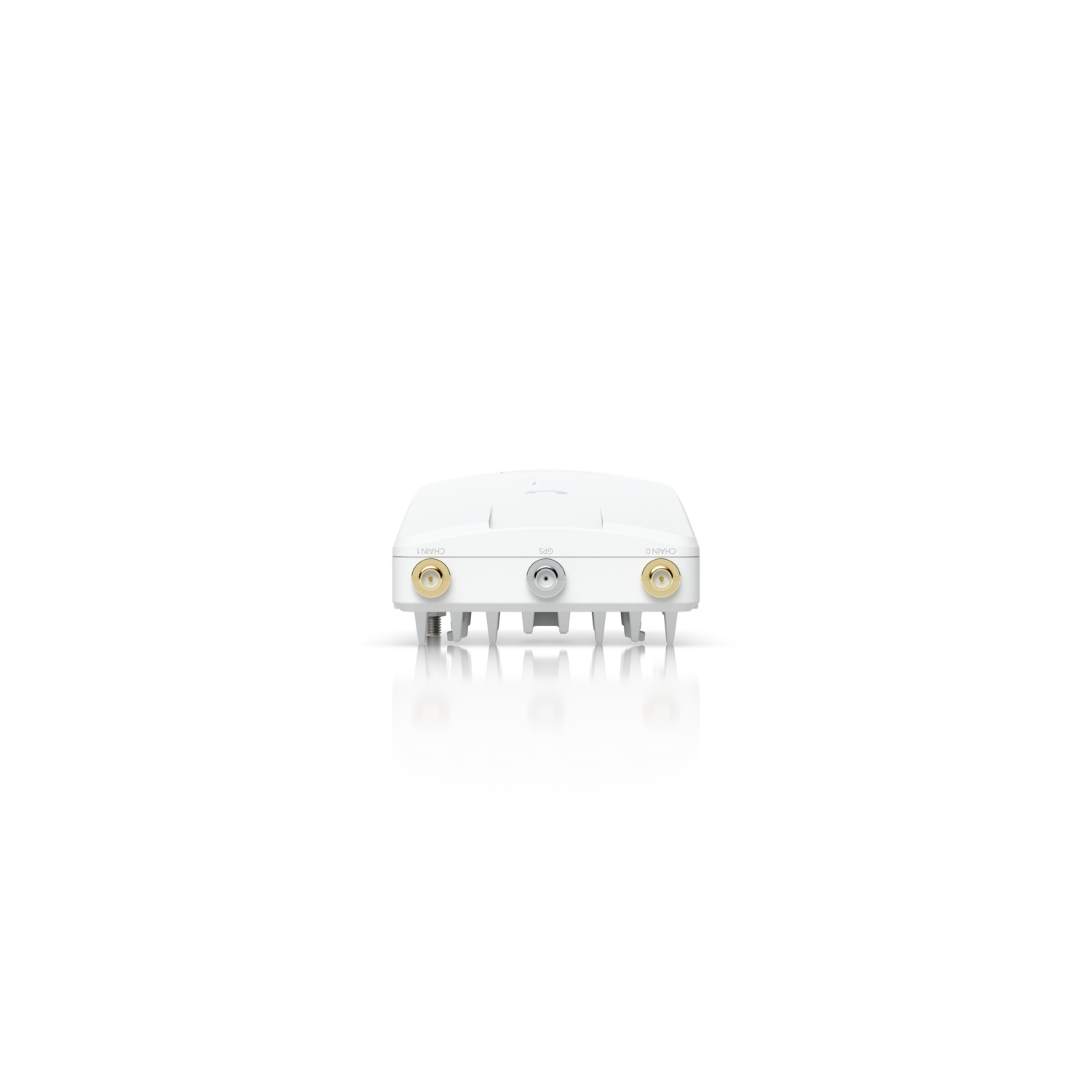

A 5 GHz point-to-point radio for long-distance backhaul, using WiFi 7 Multi-Link Operation over two radios for higher throughput. It suits ISPs and businesses linking sites over many kilometres. Antennas are connected through RP-SMA ports.

Key features

Dual 5 GHz radios with Multi-Link Operation
5+ Gbps total throughput
Range up to 100 km
10 GbE RJ45 and 10G SFP+ ports
GPS, IPX6, pole mount
Managed with UISP

Specifications

Dimensions	249.3 x 82 x 47.6 mm; (9.8 x 3.2 x 1.9")
Weight	575 g (1.3 lb)
Enclosure Material	Aluminum alloy, UV-resistant polycarbonate
Mounting	Pole Mount
Pole Mount Diameter	1-2" (25.4-50.8 mm)
Weatherproofing	IPX6
Processor	Quad-core IPQ5322 at 1.5 GHz
Memory	DDR4 1 GB

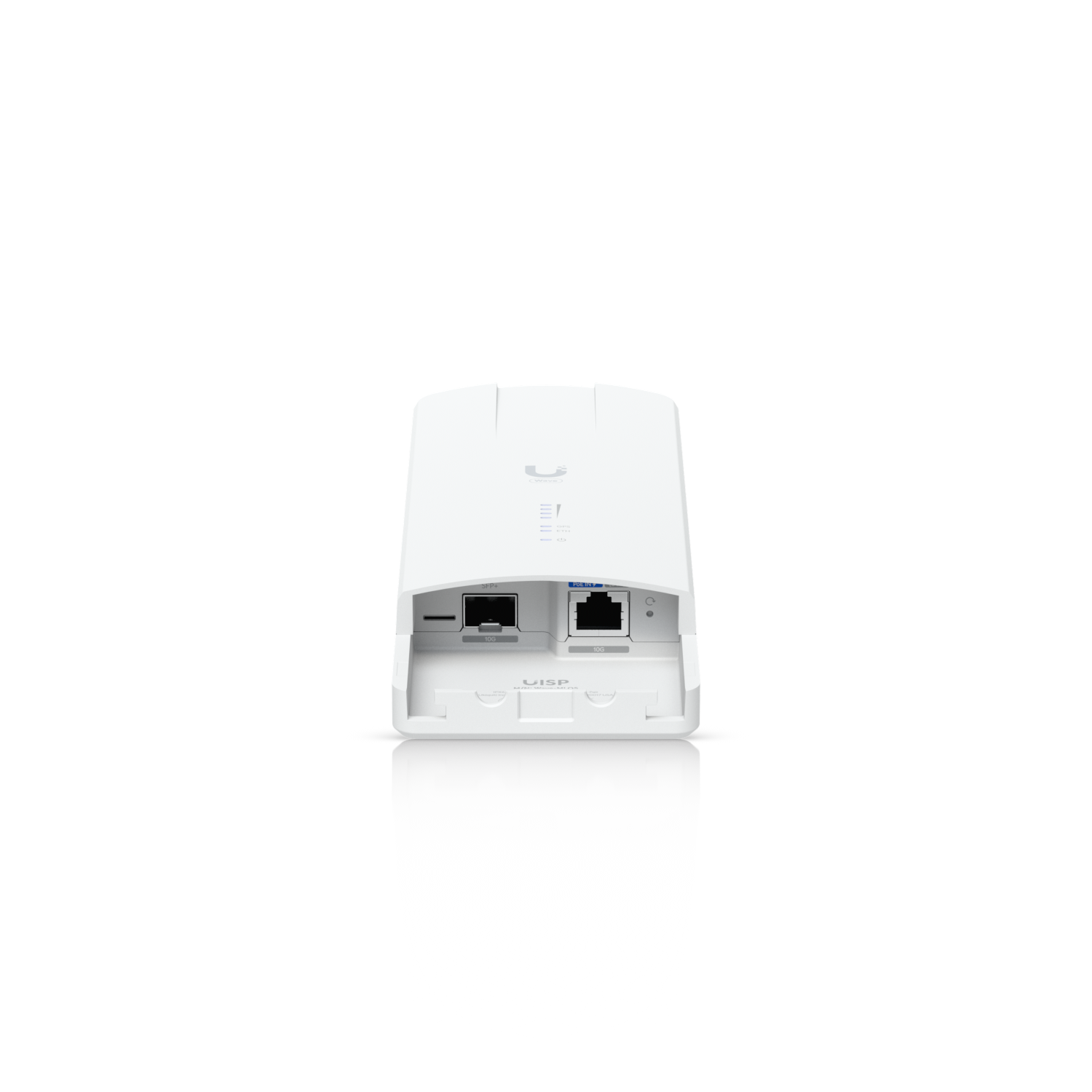

Networking Interface	(1) 10 GbE RJ45 port; (1) 10G SFP+ port
Max. Power Consumption	20W
Power Method	Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-); Passive PoE 2-pairs (4, 5+; 7, 8-), for 44-54V DC only
Power Supply	54V DC, 0.56A, 10 GbE PoE adapter (Included)
MIMO (5 GHz)	(2) 2 x 2
Max. TX Power (5 GHz)	24 dBm (Depends on regulatory region)
Ambient Operating Temperature	-40 to 60° C (-40 to 140° F)
Certifications	FCC, IC, CE
Total Throughput	5+ Gbps
Max. Range	100 km (62.1 mi)
