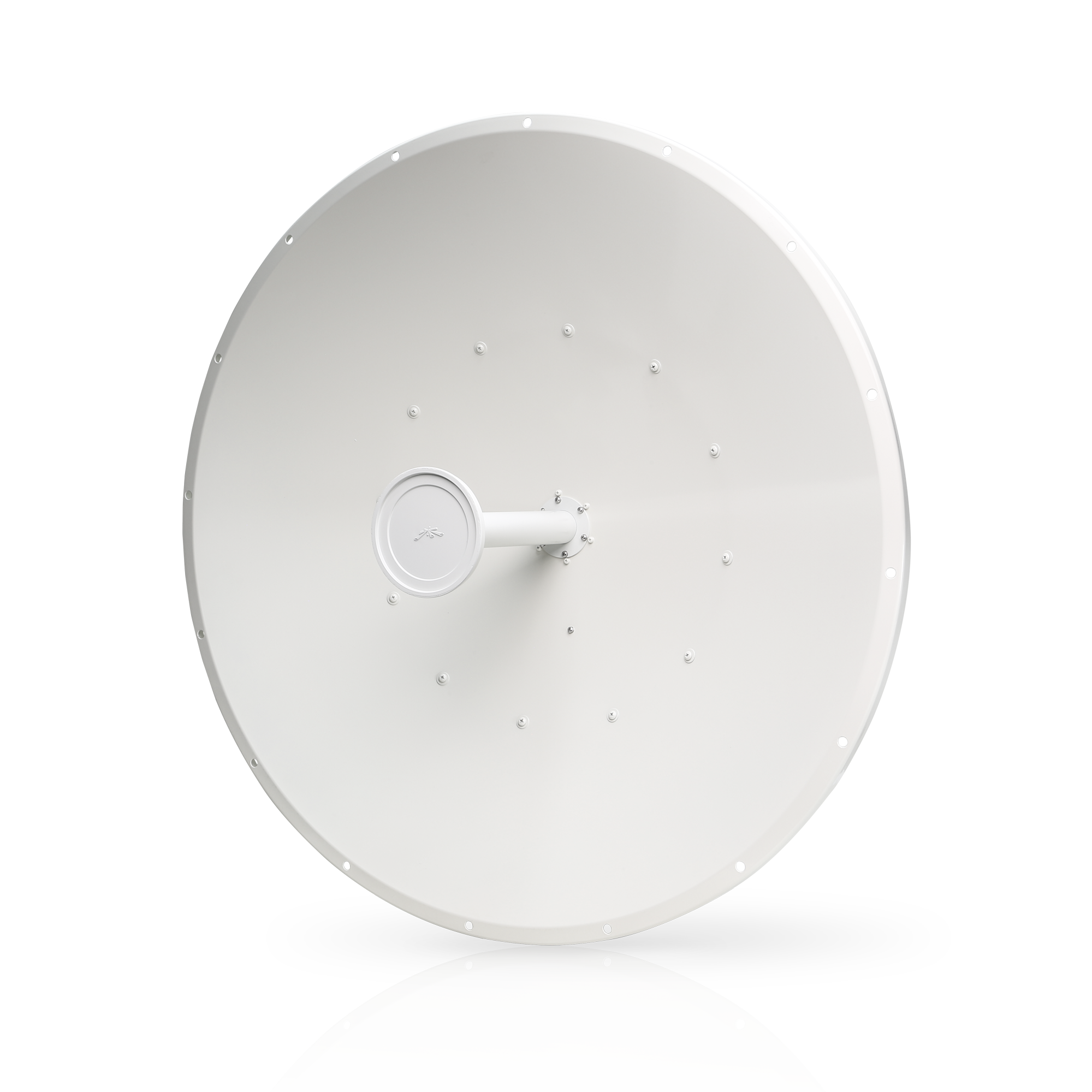

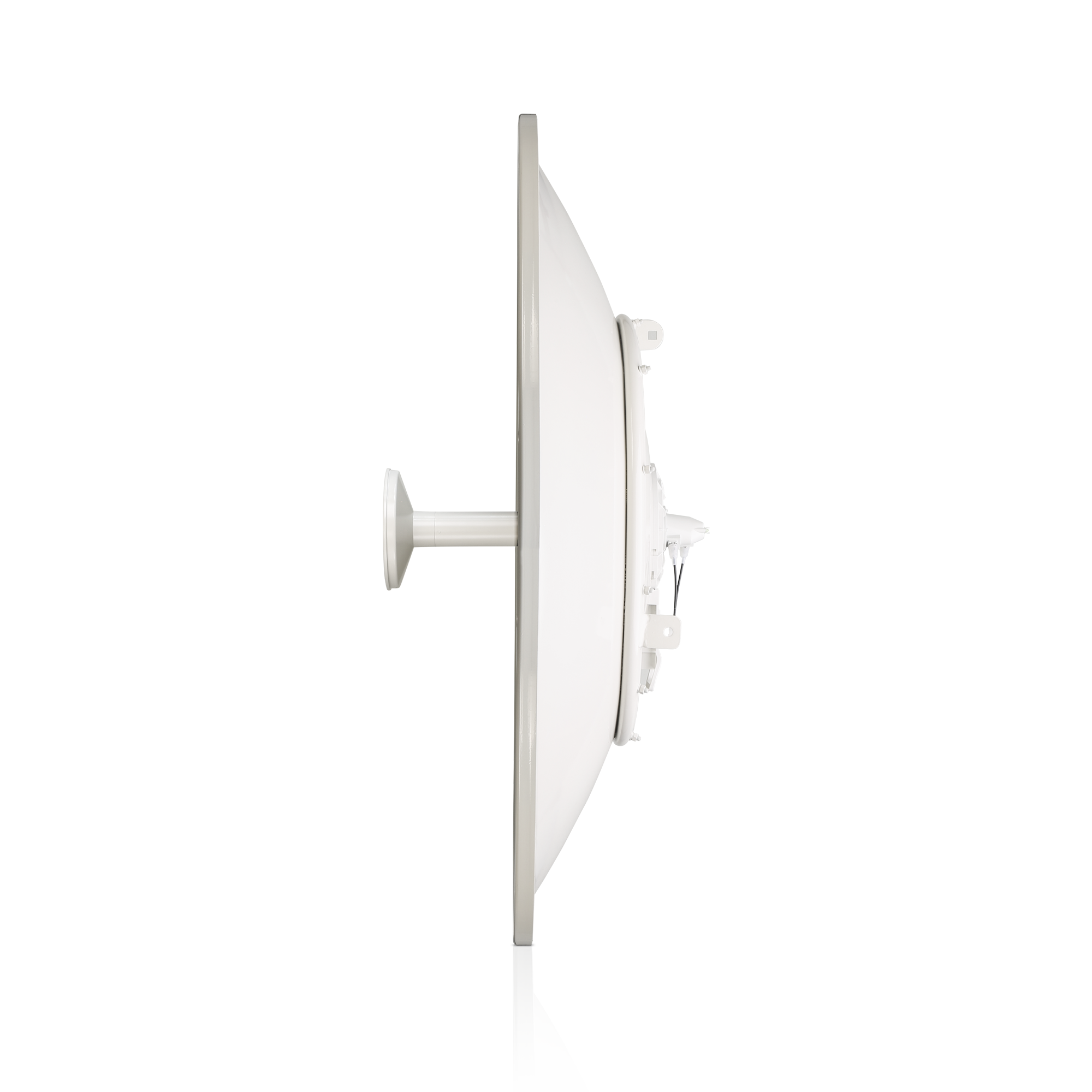

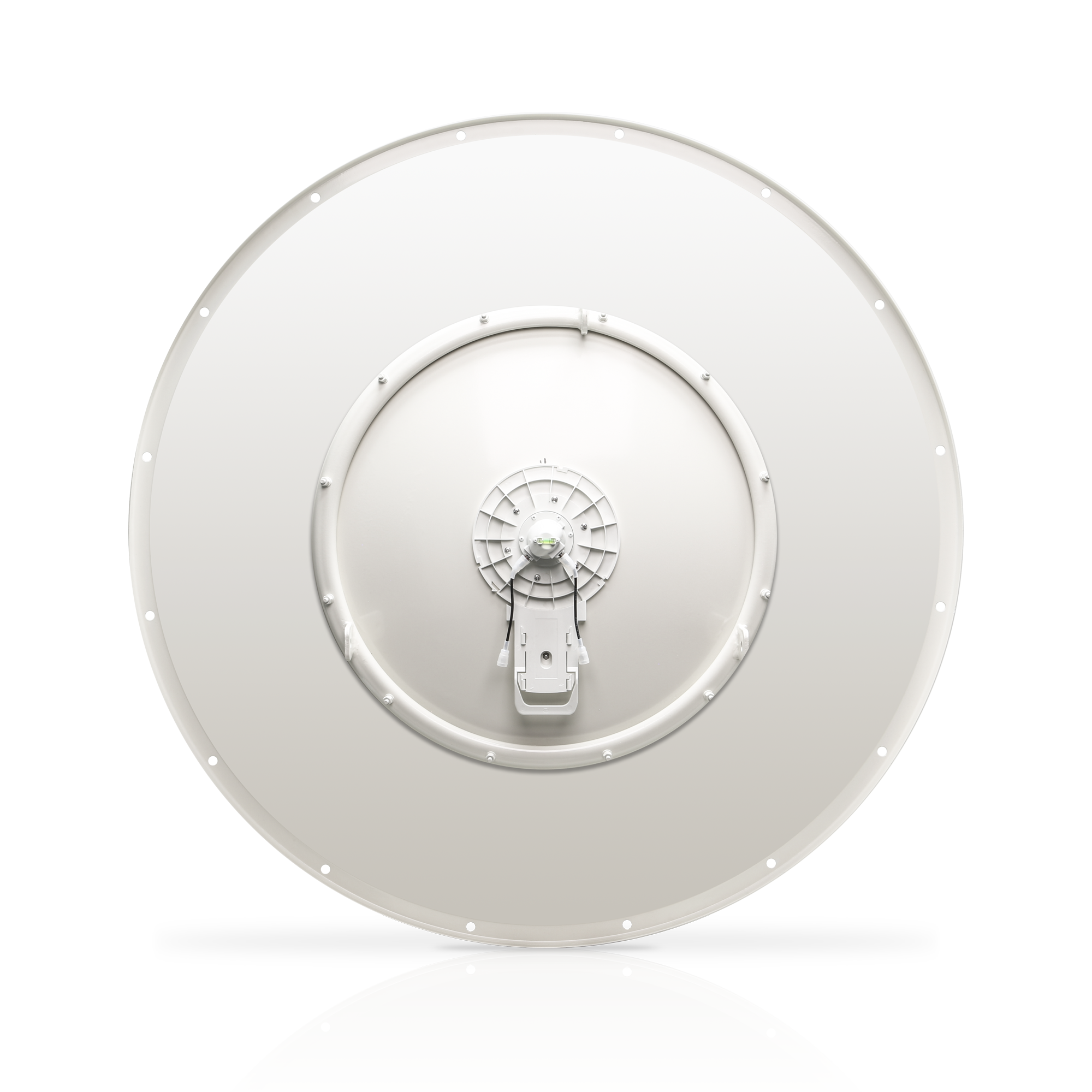

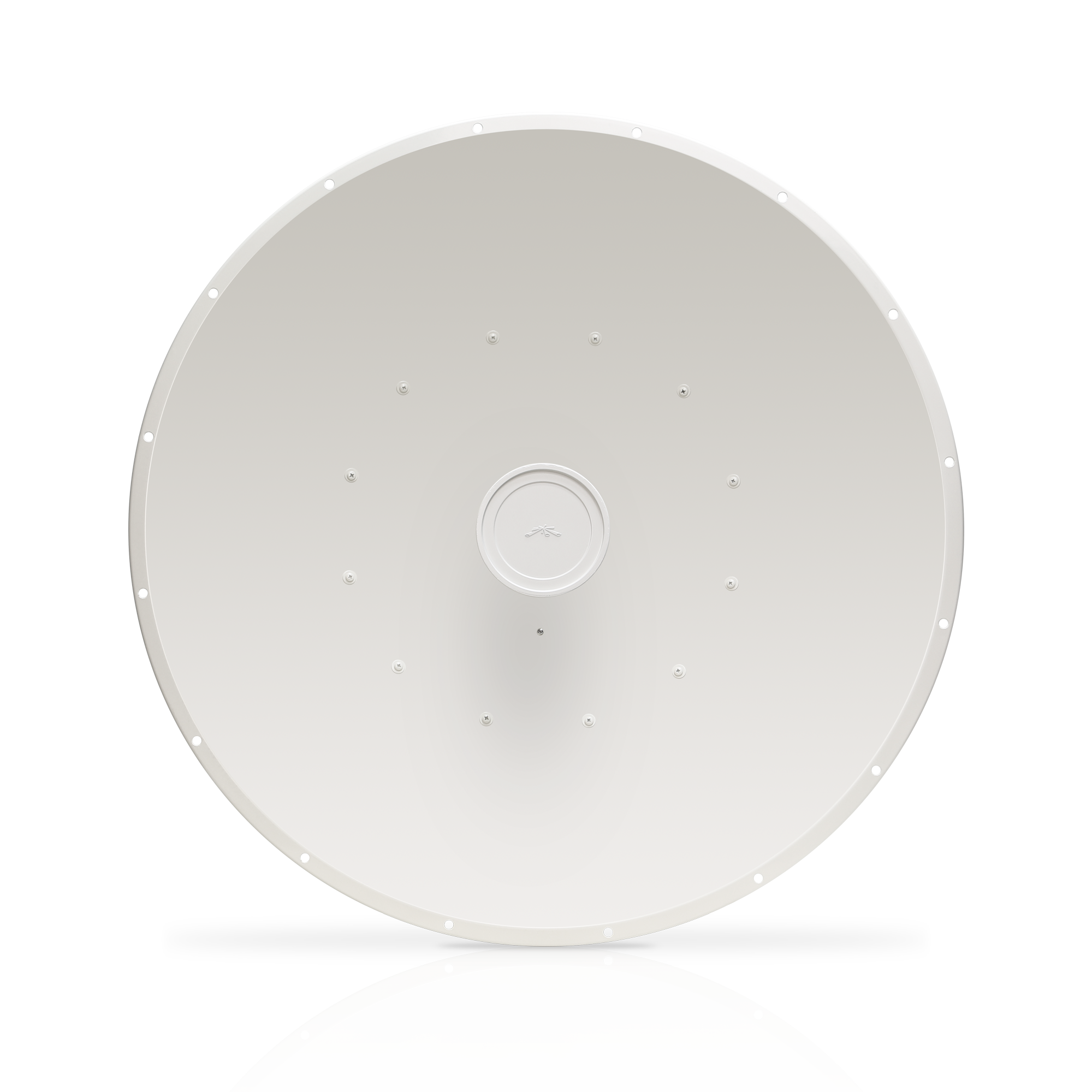

Name: Ubiquiti UISP airFiber X 5 GHz 34 dBi Slant 45 Dish Antenna (AF-5G34-S45)
Brand: Ubiquiti
SKU: AIR-D534X
Price: 7575.00 ZAR
Availability: InStock

Ubiquiti UISP airFiber X 5 GHz 34 dBi Slant 45 Dish Antenna (AF-5G34-S45)

0 /5.0 (0 reviews)

SKU AIR-D534X

A large 34 dBi dish for airFiber X 5 GHz radios, for long point-to-point links. It ships with the pole mount, an airFiber radio bracket and weatherproof RF jumpers, so the radio bolts straight on.

Key features

34 dBi gain across 5.1 to 5.8 GHz
Slant 45 dual-linear polarisation
42 dB front-to-back ratio
Universal pole mount, airFiber radio bracket and weatherproof RF jumpers included
Rated for winds up to 200 km/h

Specifications

Model	AF-5G34-S45
Frequency	5.1 to 5.8 GHz
Gain	34 dBi
Polarisation	Dual linear (slant 45)
Max VSWR	1.4:1
F/B ratio	42 dB
ETSI specification	EN 302 326 DN2
Dimensions	1050 x 1050 x 421 mm
Weight with mount	13.5 kg
Wind survivability	200 km/h
Wind loading	1,779 N at 200 km/h
