Name: Ubiquiti UISP airFiber X 5 GHz 23 dBi Slant 45 Dish Antenna (AF-5G23-S45)
Brand: Ubiquiti
SKU: AIR-D523X
Price: 2350.00 ZAR
Availability: InStock

Ubiquiti UISP airFiber X 5 GHz 23 dBi Slant 45 Dish Antenna (AF-5G23-S45)

0 /5.0 (0 reviews)

SKU AIR-D523X

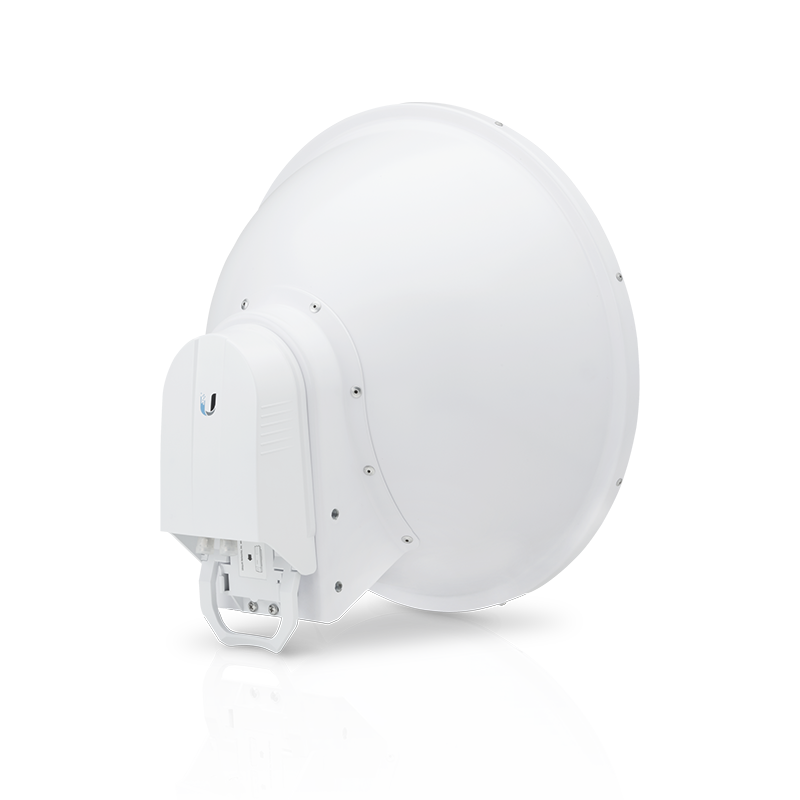

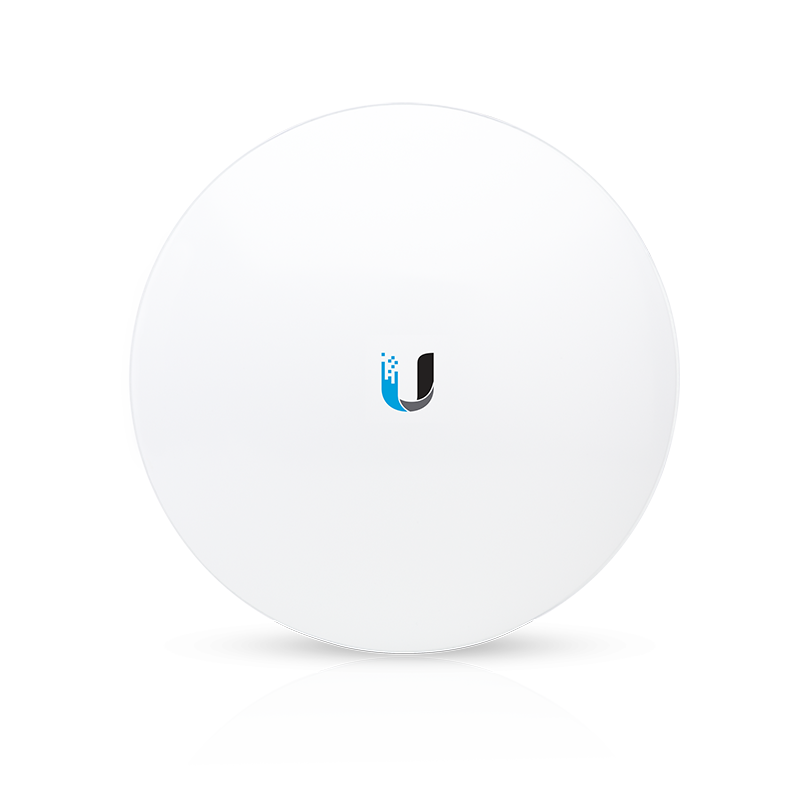

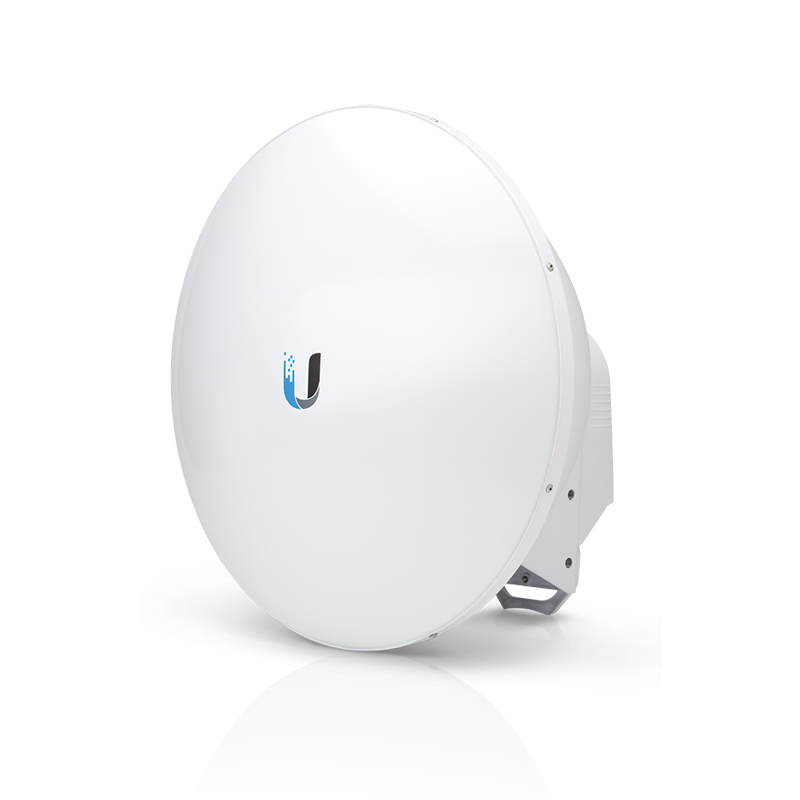

A compact 23 dBi dish for airFiber X 5 GHz radios, using slant 45 dual-linear polarisation. It suits shorter point-to-point links where a big dish is overkill, and mounts on standard 38 to 64 mm poles.

Key features

23 dBi gain across 5.1 to 5.9 GHz
Slant 45 dual-linear polarisation
33 dB front-to-back ratio
Rated for winds up to 200 km/h
Universal pole mount for 38 to 64 mm poles

Specifications

Model	AF-5G23-S45
Frequency	5.1 to 5.9 GHz
Gain	23 dBi
Polarisation	Dual linear (slant 45)
Max VSWR	1.5:1
F/B ratio	33 dB
ETSI specification	EN 302 326 DN2
Dimensions	378 x 378 x 290 mm
Weight with mount	3.4 kg
Wind survivability	200 km/h
Mounting	Universal pole mount, 38 to 64 mm poles
